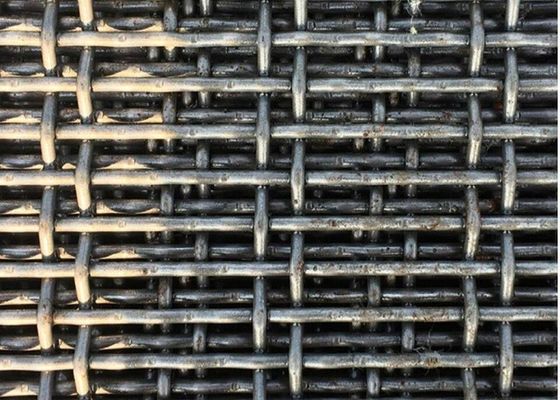

2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection

2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection
2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection

Large Image :  2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection

Product Details:
Place of Origin: China
Brand Name: KDL
Certification: ISO9001, ISO14001
Payment & Shipping Terms:
Minimum Order Quantity: 100 m2
Packaging Details: Wrapped with water proof paper and shrink film in the wooden case, or by pieces on pallet.
Payment Terms: T/T, Western Union

2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection

Description
Product Name: Quarry Screen Mesh Popularly Used In Australia For Crushing And Mining Industries Material: High Carbon Steel, Stainless Steel, 65Mn Steel, Etc.
Woven Type: Double Crimp, Inter Crimp, Lock Crimp, Flat-top Crimp, Etc Inventory Status: Some Specifications Are In Stock And Some Not
Application: Screen,Ore,coal Factory Wire Diameter: Requirement,0.5-8mm
High Light:

90mm Aperture Quarry Screen Mesh

,

Quarry Screen Mesh Corrosion Protection

,

Mine Screen Mesh Corrosion Protection

KDL Quarry Screen Mesh Popularly Used in Australia for Crushing and Mining Industries



As one of the leading manufacturers of woven wire mesh, King De Long Wire Mesh Company also produces screening mesh from high tensile steel wire or stainless steel wire. These screen meshes could be supplied in both rolls and flat panels cut to size, with or without the hooks to suit Australian quarries and mines better. There are also several types of hooks, with 45 or 180 degrees, to suit any brand of screening or vibrating machines. Besides, we could also supply the polyurethane screens upon request.



Our Quarry Screen Mesh ranges from a 2mm - 90mm aperture with wire ranging from 1mm - 12.5mm, with several crimp types, including double crimp, inter crimp, lock crimp, flat top crimp, etc. You could choose the right size and woven type, according to your specified use and work environment.



Our Quarry Screen Mesh is a versatile screening media that is easy to install and maintain, with long wear life, and could be used in most applications economically.



Some benefits include:


Large Percentage Opening Areas
Suit for Most Tensioning Hooks and Decks of the Screens
Quick and Easy Install or Change Out of Deck
Lower Initial Maintaining Cost and Longer Service Life



Applications :


The Wire Mesh Screens are best suitable for the screening or vibrating of abrasive materials, due to their high wear and corrosion resistance. These high-tensile mesh screens could be very widely used in many mining and quarry applications, including the screening and vibrating of all types of minerals, soil, sand, and stone crushing. These quarry screen mesh media is ready to install on machines of all types and ideal for many industries: mineral processing, coal, cement, gravel, sand, chemical, iron ore, power plant, and so on.



Here are some very commonly used Quarry Screen Mesh specifications, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.

Commonly Used Quarry Screen Mesh Specifications
Wire Dia. mm Aperture mm Aperture Tolerance mm Weight kg/m2
Minimum Maximum
12.7 101.6 98.55 104.65 17.92
12.7 88.9 86.23 91.57 20.16
12.7 76.2 73.91 78.49 23.04
12.7 63.5 61.6 65.41 26.88
9.19 63.5 61.6 65.41 14.76
9.19 57.15 55.44 58.86 16.17
12.7 50.8 49.28 52.32 32.26
11.1 50.8 49.28 52.32 25.28
9.19 50.8 49.28 52.32 17.88
7.92 50.8 49.28 52.32 13.57
9.19 44.45 43.12 45.78 20
7.92 44.45 43.12 45.78 15.21
9.19 41.28 40.04 42.51 21.25
7.92 41.28 40.04 42.51 16.19
9.19 38.1 36.69 39.24 22.68
7.92 38.1 36.69 39.24 17.31
7.19 38.1 36.69 39.24 14.49
9.19 31.75 30.8 32.7 26.2
7.92 31.75 30.8 32.7 20.08
7.19 31.75 30.8 32.7 16.85
7.92 28.58 27.72 29.43 21.83
7.19 28.58 27.72 29.43 18.35
7.92 25.4 24.64 26.16 23.91
7.19 25.4 24.64 26.16 20.14
5.72 19.05 18.48 19.62 16.78
4.5 15.88 15.4 16.35 12.62
4 11 10.67 11.33 13.55
4 10 9.7 10.03 14.51
4 8 7.76 8.24 16.93
2.67 6.35 6.16 6.54 10.04
2.5 6.3 6.11 6.49 9.93
2 4 3.88 4.12 9.31
2 3 2.91 3.09 11.17
1.5 2 1.94 2.06 8.99

Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.



King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.



For your reference, some photos of our products and factory are listed here, please check.



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 0



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 1



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 2



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 3



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 4



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 5



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 6



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 7



2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 8







2mm - 90mm Aperture Quarry Screen Mesh Mine Screen Mesh Corrosion Protection 9
