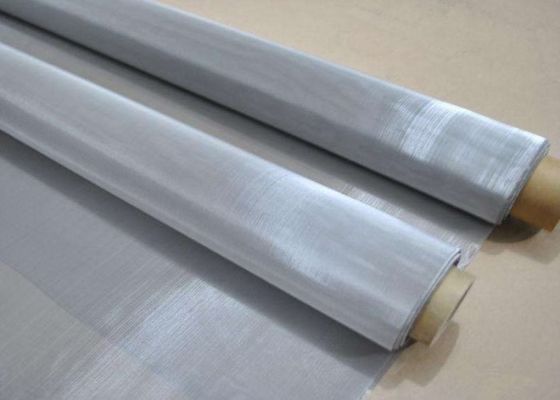

Woven Wire Mesh Screen available in seven weave types providing options for different mechanical properties and filtration efficiencies

Large Image : Woven Wire Mesh Screen available in seven weave types providing options for different mechanical properties and filtration efficiencies

Product Details:

Place of Origin:	Made in China
Brand Name:	KDL
Certification:	ISO9001 ISO4001

Payment & Shipping Terms:

Minimum Order Quantity:	50square meters
Price:	To be negociated
Packaging Details:	Water-proof paper and plastic film,then into wooden cases.
Delivery Time:	30days after the order confirmed.
Payment Terms:	L/C, D/P, T/T, D/A
Supply Ability:	2000square meters per month

Contact Now

Woven Wire Mesh Screen available in seven weave types providing options for different mechanical properties and filtration efficiencies

Description

Weightpersquaremeter:	0.5 Kg	Key Word:	Stainless Steel Screen Mesh
Weaving Type:	Plain, Twilled, Dutch, Cripmed,etc	Surfacetreatment:	Galvanized, PVC Coated, Electro-polished
Hole Type:	Square Or Rectangular	Aperture Shape:	Square
Edge:	Selvedged Or Cutted Edge	Weavetype:	Plain Weave,Twilled Weave,Dutch Weave
Samples:	For Free	Hole Shape:	Square
Material Type:	SS304 304L 316 316L
Highlight:	woven wire mesh screen with seven weave types , woven wire mesh screen for mechanical properties , woven wire mesh screen for filtration efficiency

Stainless Steel Woven Wire Mesh
Product Datasheet · Anping Kingdelong Wire Mesh Co., Ltd. (KDL) · Established 1986 · 420 CNC looms · ISO 9001 & ISO 14001 · 160+
countries
Woven on CNC looms from 1 mesh / 2.50 mm wire up to 500 mesh / 0.020 mm wire, in seven weave patterns and alloys from 304 to Inconel.
Supplied as roll stock, cut pieces or finished elements.
1. Specification

Mesh count	Wire dia.	Roll width	Roll length	Weave types	Tolerance / Docs
1 – 500 per linear inch	0.020 – 2.50 mm	0.914 / 1.0 / 1.22 / 1.5 / 2.0 m	30 m (100 ft); cut to length free	Plain, Twill, Plain Dutch, Twill Dutch, Reverse Dutch, Five-Heddle, Crimped	Aperture ±3 % typical; mill certificate + per-roll inspection record

2. Square Mesh — Stock Production Range (open area = (aperture ÷ pitch)² × 100, pitch = 25.4 ÷ mesh; nominal figures)

Mesh / in	Wire (mm)	Wire (in)	Aperture (mm)	Aperture (µm)	Open %	Mesh / in	Wire (mm)	Wire (in)	Aperture (mm)	Aperture (µm)	Open %
2 × 2	1.60	0.0630	11.10	11100	76.4	60 × 60	0.178	0.0070	0.250	250	34.1
4 × 4	1.19	0.0470	5.16	5160	65.9	80 × 80	0.140	0.0055	0.178	178	31.4
8 × 8	1.10	0.0430	2.08	2080	42.8	80 × 80	0.120	0.0047	0.197	197	38.6
10 × 10	1.00	0.0390	1.54	1540	36.8	100 × 100	0.114	0.0045	0.140	140	30.3
10 × 10	0.51	0.0200	2.03	2030	63.9	100 × 100	0.102	0.0040	0.150	150	35.4
14 × 14	0.51	0.0200	1.30	1300	51.7	100 × 100	0.089	0.0035	0.170	170	43.1
18 × 18	0.43	0.0170	0.98	980	48.2	120 × 120	0.094	0.0037	0.117	117	30.7
20 × 20	0.51	0.0200	0.76	760	35.9	150 × 150	0.066	0.0026	0.104	104	40.2
20 × 20	0.41	0.0160	0.86	860	46.1	180 × 180	0.058	0.0023	0.084	84	34.7
30 × 30	0.33	0.0130	0.52	520	37.4	200 × 200	0.053	0.0021	0.074	74	33.6
30 × 30	0.23	0.0090	0.62	620	53.3	250 × 250	0.040	0.0016	0.062	62	36.8
40 × 40	0.25	0.0100	0.38	380	35.9	300 × 300	0.035	0.0014	0.050	50	34.4
50 × 50	0.229	0.0090	0.28	280	30.3	325 × 325	0.030	0.0012	0.048	48	38.0
50 × 50	0.203	0.0080	0.31	310	36.5	400 × 400	0.025	0.0010	0.038	38	36.8
60 × 60	0.191	0.0075	0.230	230	29.8	500 × 500	0.020	0.0008	0.031	31	36.8

Applications :
Filtration and separation · screening and sizing (test sieves, vibrating screens, grain grading) · chemical and petrochemical (shale shaker screens, pickling baskets,catalyst support, demisters) · food, pharmaceutical and medical · architecture (facades, balustrades, ceiling panels) · engineering and safety (machine guards,
EMI/RFI shielding, battery substrates, aerospace).
