Customizable Width Plain Weave Woven Wire Mesh Screen with Multiple Material Options

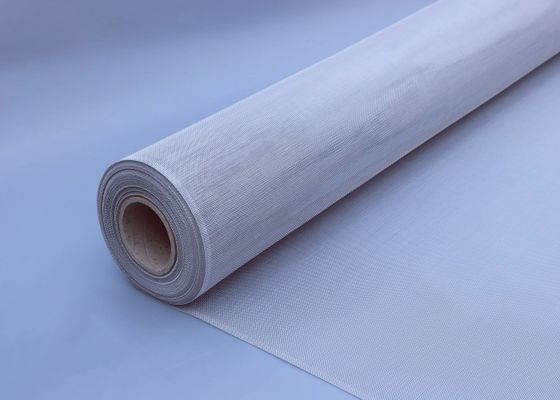

Large Image : Customizable Width Plain Weave Woven Wire Mesh Screen with Multiple Material Options

Product Details:

Brand Name:	Kingdelong
Certification:	ISO9001, ISO14001, ISO45001, SGS
Model Number:	KDL

Payment & Shipping Terms:

Minimum Order Quantity:	30sqm
Price:	$75-$110
Packaging Details:	Rolling Around Paper Tube First, Moisture-proof Paper Outside Or Plastic Fabrics, Customized Packing Available
Delivery Time:	5 To 7 Days, If In Stock
Payment Terms:	D/P,T/T,D/A
Supply Ability:	10000sqm

Contact Now

Customizable Width Plain Weave Woven Wire Mesh Screen with Multiple Material Options

Description

Product Name:	Customizable Plain Weave Style Woven Wire Mesh Screen For Different Applications	Material:	Stainless Steel, Carbon Steel, Brass, Copper, Nickel, Etc
Width:	0.5-2.5m	Hole Type:	Square
Weaving Type:	Plain Weave, Ducth Weave, Twilled Weave, Etc	Edge Type:	Raw Edge, Selvage, Etc.
Package:	Waterproof Paper + Wooden Case	Surface Treatment:	Electrolytic Polishing, Galvanized, PVC Coated
Highlight:	PVC coated woven wire mesh screen , customizable plain weave wire mesh , woven wire mesh for applications

Customizable Plain Weave Style Woven Wire Mesh Screen

Product Overview

The Woven Wire Mesh Screen is a durable and versatile product designed for various industrial applications. Made from high carbon steel, this crimped wire mesh screen offers exceptional strength and durability, making it suitable for demanding environments.

With width options ranging from 0.5 to 2.5 meters and maximum widths up to 8 meters, this mesh screen can be customized to fit specific project requirements. The product features multiple edge preparation options including Selvage and Raw Edge for easy installation and integration into various systems.

Key Features

Product Name: Woven Wire Mesh Screen
Edge Preparation: Selvage, Raw Edge, etc
Material Type: Stainless Steel, Carbon Steel, Brass, Copper, Nickel, etc
Edge Type: Raw Edge, Selvage
Surface Treatment: Electrolytic Polishing, Galvanized, PVC Coated
Shape: Square
Weave Type: Flat-Topped Curved

Technical Specifications

Parameter	Specifications
Material	Mild steel, galvanized steel, stainless steel (304/304L, 316/316L), aluminum, brass/bronze, nickel alloys (Inconel/Monel), polymer-backed synthetic meshes
Wire Diameter (d)	0.05 mm to 1.5 mm (depends on material and mesh)
Aperture Size (a)	0.1 mm to 5.0 mm (varies with weave and wire size)
Mesh Count (Warp x Weft)	e.g., 6x6, 8x8, 10x10, 12x12, 14x14, up to 40x40 and beyond for fine meshes
Weave Type	Plain weave, Twill weave; lock crimp, dutch weave, composite/laminated variants exist
Open Area (%)	Typically 30%-70% depending on wire size and weave
Thickness (t)	Overall mesh thickness including coating: roughly 0.3 mm to 2.0 mm
Coating / Surface	Uncoated, galvanized, epoxy/polyurethane coatings, nickel, PTFE coatings, electro-polished finishes
Temperature Rating	Metal meshes: up to several hundred °C (varies by alloy); polymer coatings limit max temperature
Mechanical Properties	Tensile strength (material-dependent); rigidity vs. flexibility varies by weave and wire size
Chemical Compatibility	Depends on material; stainless steels offer high corrosion resistance; polymers have chemical limits

Applications

Filtration and Screening
Liquid and gas filtration in water treatment, chemical processing, and food and beverage applications. Viscous slurry filtration in mining and mineral processing. Air and gas filtration in HVAC systems and industrial clean rooms.
Screening and Sieving
Mining and mineral processing for efficient ore separation. Recycling and waste processing for material sorting. Agriculture and seed processing for quality control. Automation and robotics for component protection.
Industrial and Mechanical Uses
Filtration belts and belting surfaces in processing lines. Drying chambers for moisture removal. Sieving in packaging and bottling lines for consistent particle size distribution.
Durability and Maintenance
Corrosion resistance through various coatings. Easy cleaning and sanitation for food and pharmaceutical applications. Proper tension and edge finishing for extended service life.
