Product Details:
|
| Weaving Type: | Flat-Topped Curved | Packing: | Pallet |
|---|---|---|---|
| Length: | 0.5m To 30m | Application: | Screening, Filtration, Sieving, Etc. |
| Opening Size: | 0.5-400mm | Width: | 0.5m-2.2m |
| Tensile Strength: | More Than 1000-1800MPa | Wire Diameter: | 0.2mm To 15mm |
| High Light: | 30m Stainless Steel Woven Wire Mesh Screen,0.5m Stainless Steel Woven Wire Mesh Screen,Woven Wire Mesh Screen Corrosion Resistant |
||

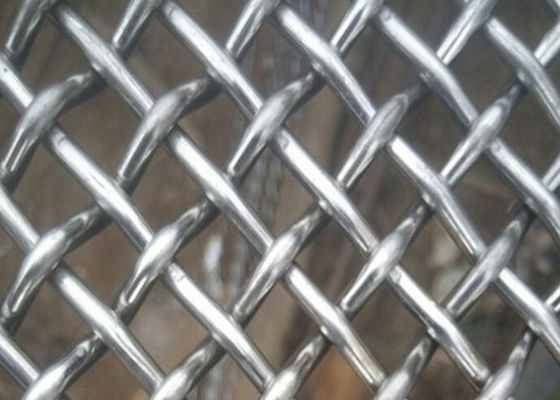

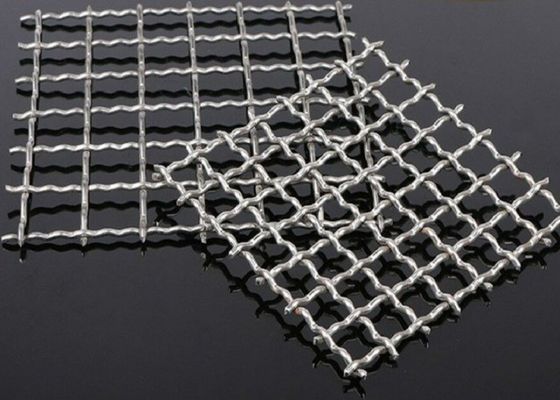

Woven Wire Mesh Screen is made of high carbon steel, which is rust-proof and anti-corrosive. It is mainly used in mining, coal factory, construction and other industries. The edge type of the mesh is available in flat edge or hooked edge, and the opening size ranges from 0.5 to 400mm.
This Mesh Stone Crusher Screen has an anti rust oil or anti rust paint surface treatment, which is very durable and long lasting. The minimum order quantity is only 1 piece, and the delivery time is within 7-15 days.
This Mesh Stone Crusher Screen is ideal for screening and filtering materials, and it is also widely used in screening operations in various industries. It is an excellent choice for sieving and filtering materials.
| WIRE DIA | APERTURE | WEIGHT | 1M×2M 1.5M×2M 2M×2.5M 1.22M×2.387M and Customizable |
| mm | mm | kg/M² | |
| 0.75 | 1.00 | 4.29 | |
| 1.00 | 1.50 | 5.33 | |
| 1.50 | 2.00 | 8.57 | |
| 2.00 | 3.00 | 10.67 | |
| 3.00 | 4.00 | 17.15 | |
| 3.00 | 5.00 | 15.00 | |
| 3.50 | 6.00 | 17.20 | |
| 4.00 | 8.00 | 17.44 | |
| 4.00 | 10.00 | 14.95 | |
| 4.50 | 12.00 | 16.05 | |
| 4.50 | 12.50 | 15.58 | |
| 4.50 | 14.00 | 14.32 | |
| 5.00 | 16.00 | 15.57 | |
| 5.50 | 18.00 | 16.84 | |
| 5.50 | 19.00 | 16.15 | |
| 5.50 | 20.00 | 15.52 | |
| 6.50 | 22.00 | 19.39 | |
| 6.50 | 24.00 | 18.12 | |
| 6.50 | 25.00 | 17.55 | |
| 6.50 | 28.00 | 16.02 | |
| 7.00 | 32.00 | 16.44 | |
| 7.50 | 35.00 | 17.31 | |
| 7.50 | 38.00 | 16.17 | |
| 7.50 | 40.00 | 15.49 | |
| 7.50 | 45.00 | 14.02 | |
| 8.00 | 50.00 | 14.43 | |
| 9.00 | 63.00 | 14.72 | |
| 9.00 | 75.00 | 12.61 | |
| 11.00 | 100.00 | 14.26 |
KDL Woven Wire Mesh Screen is manufactured in Anping, Hebei, with high-quality high carbon steel or spring steel and surface treatment of anti rust oil or anti rust paint. It has a variety of opening size from 0.5 to 400mm and the tensile strength over 1000-1800MPa. It is widely used as mining screen mesh, vibrating screen mesh, security screen mesh, etc. The edges of KDL woven wire mesh screen are available in flat edge or hooked edge.
We provide customization service for Woven Wire Mesh Screen to meet different customer needs. Our product is KDL brand, and it is made in Anping, Hebei. The minimum order quantity is one piece. It is made of high carbon steel and features corrosion resistance, heat resistance, acid resistance, etc. The width varies from 0.5m to 2.2m and it can be used for screening, filtration, sieving, etc. Besides, the edges can be flat edge or hooked edge. Our mesh stone crusher screen is widely used for mining and stone crushing.
Packaging and Shipping of Woven Wire Mesh Screen:
The Woven Wire Mesh Screen is packaged in rolls or sheets and shipped in suitable containers to protect the product from damage. Depending on the size and shape of the product, the packaging material used can vary. For example, if the product is in sheets, it can be wrapped in plastic or foam to provide extra protection. Additionally, if the product is in rolls, it can be shrink wrapped or put into cardboard boxes.
The shipping method for the Woven Wire Mesh Screen will depend on the quantity ordered and the distance of transportation. Larger orders may be shipped by land or sea, while smaller orders can be shipped by air. All orders are shipped with proper labeling and tracking to ensure that the product is delivered to the correct destination on time.
A5: The maximum temperature for Woven Wire Mesh Screen is up to 600°C.
