Product Details:
|
Product Name: | Stainless Steel Twilled Dutch Weave Wire Mesh | Material: | Stainless Steel AISI304, AISI316 |
---|---|---|---|
Woven Type: | Twilled Dutch Weave | Inventory Status: | Some Specifications Are In Stock And Some Not |
Highlight: | AISI316 Twill Dutch Weave Wire Mesh,Twill Dutch Weave Wire Mesh rustproof,Wire Mesh Cloth Rustproof |

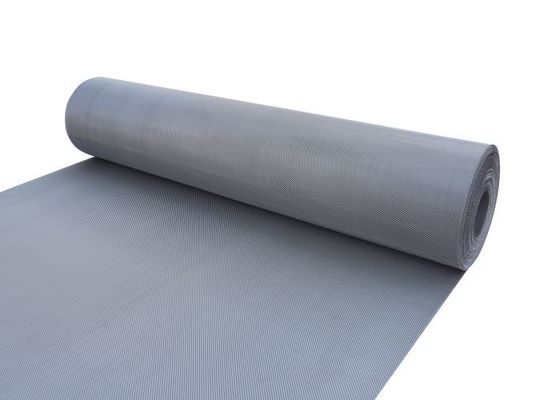

Stainless Steel AISI304 and AISI316 Twilled Dutch Weave Wire Mesh
Twilled Dutch Weave offers even more strength than Plain Dutch Weave wire cloth. Twilled Dutch Weave actually combines the Dutch Weave and Twilled Weave process to produce a super fine wire mesh filtering cloth which is created by passing weft wires over and under two warp wires. During this process, the mesh can pack a bigger volume of wires into given area, resulting to finer mesh counts and lower flowing rate than normal Dutch Weaves.
Twilled Dutch Weave is very suitable for filtering materials as small as two microns in size, making it well-suited for various liquid and gas applications, especailly for chemical industry and petroleum industry.
Here are some very common specifications of the twilled dutch weave for your reference.
Other specifications and sizes are made to order. Please contact our sales team to discuss.
Mesh Count (warp x weft) | Wire Dia. Mm (warp x weft) | Absolute Filter Rating (microns) | Nominal Filter Rating (microns) | |
20 x 250 | 0.25 | 0.20 | 110 - 120 | 100 |
30 x 360 | 0.25 | 0.15 | 90 - 100 | 80 |
40 x 560 | 0.18 | 0.10 | 70 - 75 | 50 |
120 x 400 | 0.10 | 0.06 | 50 - 55 | 40 |
120 x 600 | 0.10 | 0.06 | 40 - 45 | 30 |
80 x 700 | 0.10 | 0.08 | 35 - 38 | 25 |
200 x 600 | 0.06 | 0.05 | 28 - 32 | 20 |
165 x 800 | 0.07 | 0.05 | 24 - 26 | 15 |
165 x 1400 | 0.07 | 0.04 | 16 - 18 | 10 |
200 x 1400 | 0.07 | 0.04 | 12 - 14 | 5 |
250 x 1400 | 0.06 | 0.04 | 11 - 12 | 4 |
325 x 2300 | 0.04 | 0.03 | 8 - 9 | 2 |
Attention
Be careful of the cutted sharp edge, avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
Here are some photos of our factory and products for your reference.
