Product Details:
|
| Product Name: | Mild Steel Woven Wire Mesh | Material: | Mild Steel Or Plain Steel, Low Carbon Steel |
|---|---|---|---|
| Color: | Black Or Color Painted | Woven Type: | Plain Weave Or Twilled Weave |
| High Light: | Customizable Mild Steel Woven Wire Mesh,Building mild steel woven mesh,Customizable Construction Wire Mesh |
||
Mild Steel Woven Wire Mesh for Buildig and Construction Industries
Mild Steel Woven Wire Mesh can also be made from other materials such as stainless steel, brass, copper and aluminum. And there are also several woven types, such as the plain weave, twilled weave, dutch weave. Mild Steel Woven Wire Mesh could be manufactured ranging from 2mesh to 60mesh, with numerous wire sizes and openings, and with the opening area from 79.6 percent to 37.2 percent.
Mild Steel Wire Mesh Applications
Mild Steel Wire Mesh is primarily used in food processing applications such as flour sifting and milling, seed and feed sifting. It is also widely used in Plastic and Rubber Industry for filtration, Petrochemical Industry for exploration and drilling operations, and etc. In contruction industry, it always used to hold the cement-lime mortar or other mortars.
Here are some very common specifications of the mild steel woven wire mesh for your reference.
Other specifications and sizes are made to order. Please contact our sales team to discuss.
| Mesh | Wire Dia. Mm | Opening mm | Opening Area % |
| 2 x 2 | 1.40 | 11.33 | 79.6 |
| 3 x 3 | 1.10 | 7.42 | 76.7 |
| 4 x 4 | 0.90 | 5.46 | 74 |
| 5 x 5 | 0.81 | 4.27 | 70.6 |
| 6 x 6 | 0.71 | 3.52 | 69.6 |
| 7 x 7 | 0.71 | 2.92 | 64.8 |
| 8 x 8 | 0.64 | 0.25 | 64 |
| 9 x 9 | 0.60 | 2.24 | 62.7 |
| 10 x 10 | 0.51 | 0.20 | 64 |
| 11 x 11 | 0.51 | 1.80 | 61 |
| 12 x 12 | 0.46 | 1.66 | 61.5 |
| 14 x 14 | 0.43 | 1.38 | 58.1 |
| 16 x 16 | 0.41 | 1.18 | 55.4 |
| 18 x 18 | 0.38 | 1.03 | 53.3 |
| 20 x 20 | 0.36 | 0.91 | 51.8 |
| 22 x 22 | 0.34 | 0.81 | 49.6 |
| 24 x 24 | 0.33 | 0.73 | 47.4 |
| 26 x 26 | 0.28 | 0.70 | 51 |
| 28 x 28 | 0.25 | 0.65 | 51.8 |
| 30 x 30 | 0.24 | 0.60 | 51.1 |
| 32 x 32 | 0.23 | 0.57 | 50.9 |
| 34 x 34 | 0.23 | 0.52 | 48.1 |
| 36 x 36 | 0.23 | 0.48 | 45.7 |
| 38 x 38 | 0.22 | 0.45 | 45.8 |
| 40 x 40 | 0.22 | 0.42 | 43.6 |
| 45 x 45 | 0.20 | 0.36 | 40.8 |
| 50 x 50 | 0.19 | 0.32 | 39.1 |
| 60 x 60 | 0.17 | 0.26 | 37.2 |
Attention
Be careful of the cutted sharp edge, avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list , where we put our over-run bargain rolls at lower prices.

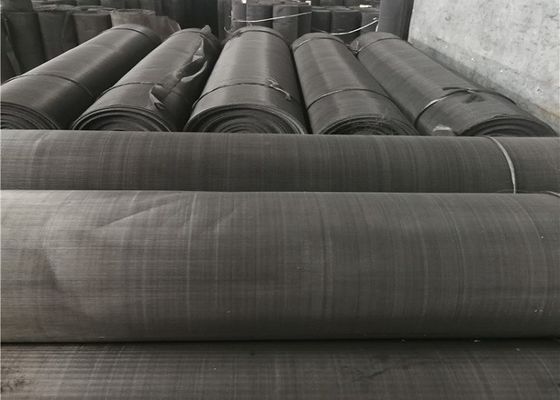

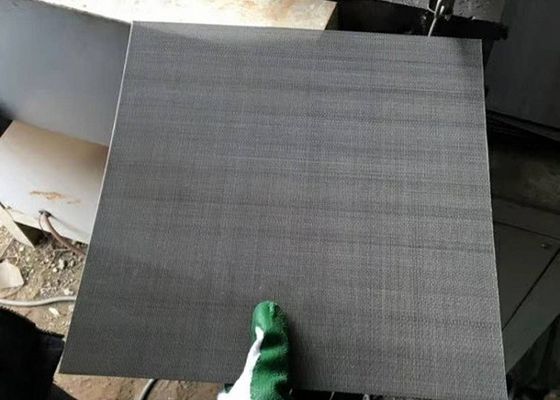

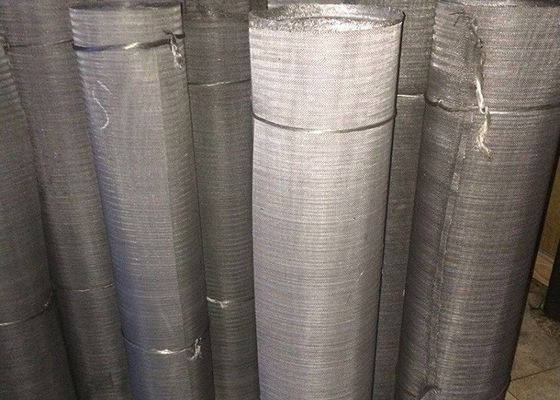

Our factory and products photos are following here for your reference.
