Product Description:

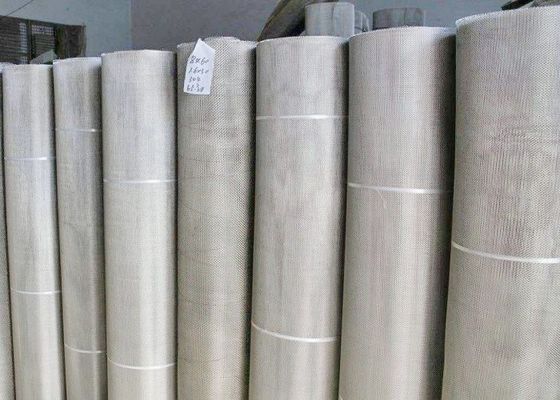

The stainless steel plain weave woven wire mesh screen is a high-quality, versatile material engineered for a wide range of industrial and commercial applications. Crafted from premium-grade stainless steel, this mesh combines strength, durability, and corrosion resistance to meet the demanding needs of modern industries.
Made from 304 or 316 stainless steel, the woven wire mesh boasts excellent corrosion resistance, especially in harsh environments such as marine, chemical, or food processing industries. The stainless steel wires are meticulously woven into a plain weave pattern, creating a sturdy yet flexible structure. Its resistance to oxidation, high temperatures, and chemical attack ensures a long service life, reducing maintenance costs and guaranteeing reliable performance over time.

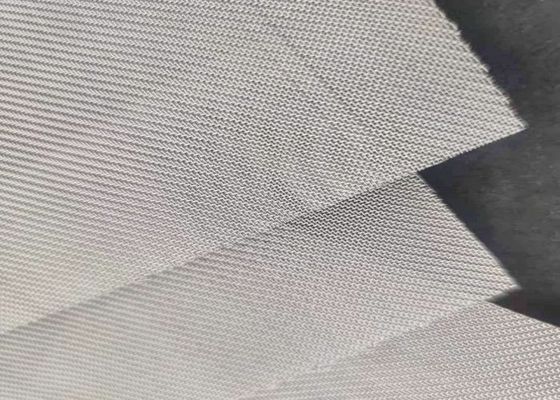

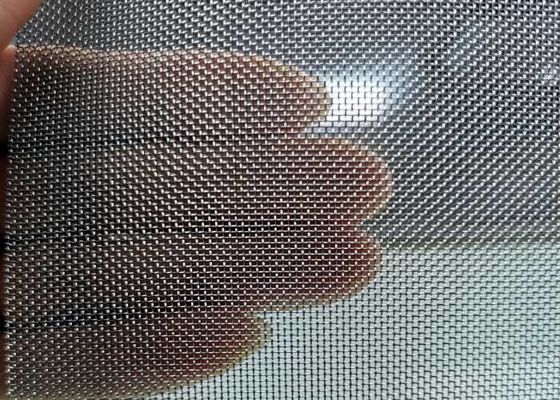

The plain weave method results in a uniform, tight mesh with stable dimensions and excellent mechanical properties. The flexibility of the mesh allows it to be easily shaped or cut into various forms without losing its integrity, making it suitable for customized applications. The mesh's open area can be tailored by adjusting the wire diameter and mesh count, providing a perfect balance between filtration efficiency and airflow or fluid flow.
Our stainless steel plain weave wire mesh combines sophisticated design with exceptional material properties, making it an ideal solution for demanding industrial environments and creative applications. Its durability, corrosion resistance, and flexibility ensure that it delivers performance and reliability across various fields, cementing its role as a versatile and valuable component.
| Plain Weave Wire Mesh |
| Mesh |
Wire Dia. (inches) |
Wire Dia. (mm) |
Effective area % |
| 1 |
0.135 |
3.5 |
21.97 |
| 5 |
0.08 |
2 |
3.04 |
| 10 |
0.02 |
0.5 |
2.03 |
| 50 |
0.009 |
0.23 |
0.28 |
| 100 |
0.0045 |
0.11 |
0.15 |
| 180 |
0.002 |
0.05 |
0.09 |
| 200 |
0.002 |
0.05 |
0.076 |
| 250 |
0.0016 |
0.04 |
0.061 |
| 270 |
0.0014 |
0.04 |
0.055 |
| 300 |
0.0012 |
0.03 |
0.053 |
| 325 |
0.0014 |
0.04 |
0.043 |
| 400 |
0.001 |
0.025 |
0.038 |
| 500 |
0.001 |
0.025 |
0.028 |
| 635 |
0.0009 |
0.022 |
0.015 |
Features:
- Product Name: Woven Wire Mesh Screen
- Surface treatment: Galvanized, PVC Coated, Epoxy Coated
- Features: Abrasion Resistant,Heavy Impact Resistant,Corrosion Resistant,Long Service Life
- Material: High Tensile Spring Steel, Manganese Steel And Stainless Steel
- Weaving type: Plain, Twilled, Dutch, Crimped
- Hole shape: Square, Rectangular
Technical Parameters:
| Stainless Steel Woven Wire Mesh |
|
Superior Corrosion Resistance
|
•Constructed with chromium-nickel alloys (18% Cr/8% Ni in 304; 16% Cr/10% Ni/2% Mo in 316)
• Withstands pH extremes (2-12), chlorides, and UV exposure
• Ideal for marine architecture, chemical processing, and food contact surfaces
|
| Engineered for Strength & Longevity |
• Tensile strength: 500-700 MPa (varies by wire diameter)
• Maintains dimensional stability under continuous vibration/impact
• 3-5X longer service life vs. carbon steel alternatives
|
Precision Filtration Performance
|
• Mesh range: 0.025mm-12.7mm aperture sizes (2 mesh to 500 mesh)
• ±3% aperture tolerance for accurate particle separation
• Applications:
Food grade powder sieving (FDA/EC1935 compliant)
Petrochemical catalyst retention (API/ISO 9044 certified)
Pharmaceutical micron filtration (meets GMP standards)
|
| Hygienic & Low-Maintenance |
• Electropolished options available (Ra ≤ 0.8μm)
• Passivated surface resists bacterial adhesion
• Clean-in-Place (CIP) compatible; autoclave-safe to 300°C |
Technical Specifications:
|
• Wire diameters: 0.03mm-3.0mm
• Weave types: Plain, Twill, Dutch Weave variants
• Standards: ASTM E2016, ISO 4783-2, EN 10204 3.1 |
| Industry Applications: |
• Mining & Aggregates: Trommel screens, scalping decks
• Water Treatment: Membrane pre-filters, wedge wire underdrains
• Aerospace: Composite material layup templates |
| Why Our Mesh? |
• Custom laser-cutting/panel fabrication available
• Third-party material certification (SGS/BV) provided
• 24/7 technical support for filtration optimization |
Applications:

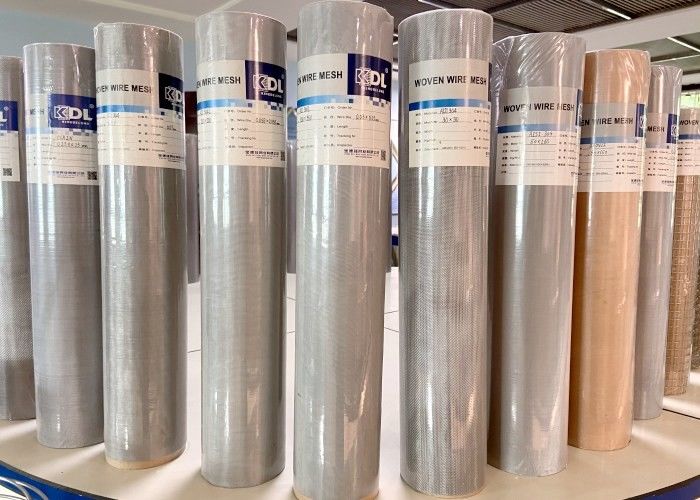

Kingdelong woven wire mesh screen, model KDL, is a versatile product suitable for a wide range of applications in various industries. Made from high tensile spring steel, manganese steel, and stainless steel, this product is known for its durability and strength.
The woven wire mesh screen is commonly used in vibrating screens for quarry and crusher applications. Its high carbon steel composition makes it ideal for heavy-duty operations where strength and resilience are essential. The screen is also used for separation and filtration in chemical and oil industries.
Originating from Anping, China, the Kingdelong woven wire mesh screen meets international standards with certifications such as ISO9001, ISO14001, ISO45001, and SGS. The product is available with edge preparations including plain, selvage, and raw edge, catering to different installation requirements.
With an opening size ranging from 1mm to 100mm, this mesh screen offers versatility in various screening processes. The surface treatments available for the product include galvanized, PVC coated, and epoxy coated, enhancing its corrosion resistance and longevity.
Customers can order a minimum quantity of 30sqm, with pricing ranging from $75 to $110 per unit. The packaging details ensure safe delivery, with options for customized packing. For convenience, delivery times range from 5 to 7 days if the product is in stock.
Payment terms accepted for the woven wire mesh screen include D/P, T/T, and D/A, providing flexibility for customers. With a supply ability of 10000sqm, Kingdelong ensures reliable availability of the product to meet varying demands.
Packing and Shipping:
Product Packaging:
The Woven Wire Mesh Screen will be carefully packaged in a sturdy cardboard box to ensure it arrives in perfect condition. The screen will be wrapped in protective material to prevent any damage during transit.
Shipping:
Orders for the Woven Wire Mesh Screen will be processed and shipped within 1-2 business days. We offer standard and expedited shipping options to meet your needs. Once your order is shipped, you will receive a tracking number to monitor the delivery status.
