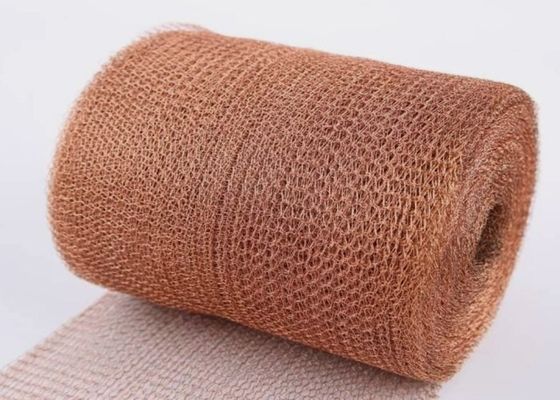

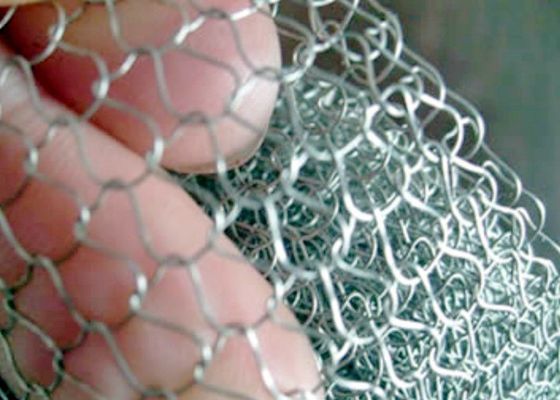

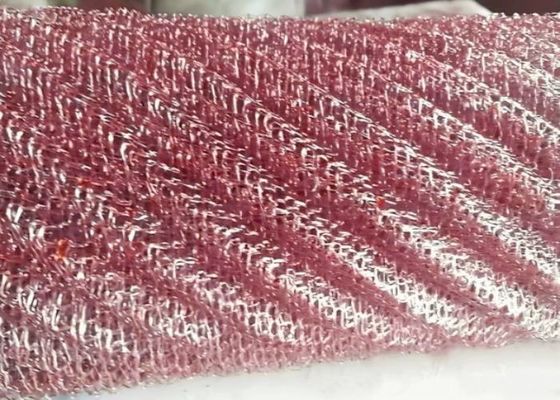

High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130

High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130
High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130 High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130 High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130 High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130

Large Image :  High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130

Product Details:
Place of Origin: Anping,China
Brand Name: KDL
Certification: ISO 9001, ISO 14001, ISO45001, SGS
Payment & Shipping Terms:
Minimum Order Quantity: 50 Kgs
Price: $1-$10
Packaging Details: Wrapped with plastic film in the carton box then put into the wooden case
Delivery Time: 5-10 day if in stock
Payment Terms: D/P,T/T,D/A
Supply Ability: 10000kg/month
Contact Now

High Performance Gas Liquid Filter Mesh with Wire Diameter .08mm to .3mm and Popular Width 30mm to 120mm for Filtration 48 to 130

Description
Features: High Strength, Corrosion Resistant, Heat Resistant Product Name: Different Filtration Grade Gas-liquid Filter Mesh For Chemical Industries
Material: Stainless Steel, Brass, Copper, Etc Wire Diameter: From .08mm To .3mm
Popular Width: 30mm, 40mm, 60mm,80mm, 90mm, 120mm, Etc Filteration: 48, 60, 76, 100, 130
Application: Wire Mesh Demister,oil-gas Separator,dust Remover,dedusting Apparatus, Etc Packing: Plastic Film And Pallets, Plastic Film And Cartons
Highlight:

Different Filtration Grade Filter Mesh

,

Chemical Industries Filter Mesh

,

Chemical Industries Gas-liquid Filter Mesh

Different Filtration Grade Gas Liquid Filter Mesh For Chemical Industries
In the chemical industry, effective filtration systems are essential for process integrity and purity. Our gas-liquid filters with various filtration grade mesh materials efficiently remove particulate contaminants from gaseous and liquid streams. The selection of appropriate filtration grade - from coarse to fine - ensures optimal performance and reliability for your specific application needs.
Key Features
  • Material Composition: Stainless steel, polypropylene, or other corrosion-resistant materials; specialized options like PTFE available
  • Mesh Size and Pore Structure: Various sizes available (5μm to 500μm) with uniform or gradient pore structures
  • Durability: High tensile strength (>300 N/mm²) to resist mechanical stress and abrasion
  • Flow Characteristics: Maintains optimal flow rates (10-100 L/min) with minimal resistance
  • Chemical Resistance: Compatible with acids, bases, and solvents
  • Temperature Resistance: Withstands temperatures up to 200°C (higher options available)
  • Easy Maintenance: Washable, reusable, and backflushable designs minimize downtime
  • Certifications: Complies with ISO 9001, FDA, and ASTM standards
  • Customization: Available in various sizes, shapes, and with special coatings/treatments
Technical Specifications
Parameter Specification
Materials Stainless Steel, Polypropylene, PTFE, Nylon
Mesh Size Range 5 μm to 500 μm
Filtration Rating 10 μm, 25 μm, 50 μm (nominal/absolute)
Max Operating Pressure Up to 5 bar / 10 bar (custom options available)
Max Temperature Up to 200°C (higher options available)
Flow Rate 10-100 L/min at nominal pressure
Chemical Resistance Compatible with acids, bases, solvents
Certifications ISO 9001, FDA compliance, ASTM standards
Applications
Our filtration mesh is widely used in:
  • Chemical processing and petrochemical industries
  • Pharmaceutical manufacturing
  • Wastewater treatment systems
  • Gas scrubbing and liquid-liquid separation

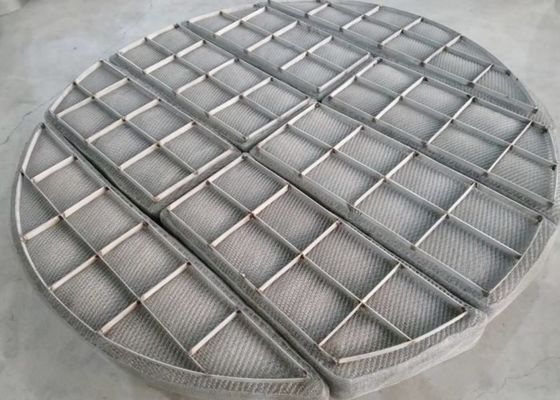

  • Wire mesh demisters and oil-gas separators
  • Dust removal and dedusting apparatus
  • Environmental protection devices
  • Automotive muffling and purifying components
  • Electromagnetic interference and shielding devices
Packaging & Shipping
Each filter mesh undergoes rigorous quality inspection before packaging:
  • Individual units wrapped in protective plastic or polyethylene
  • Additional padding for fragile/high-value items
  • Sturdy cardboard boxes or crates with proper labeling
  • Multiple shipping options available (truck, air, ocean freight)
  • International shipment support with customs documentation
  • Tracking information provided for all shipments
Standard delivery time: 5-10 days for in-stock items. Payment terms include D/P, T/T, and D/A.
