Product Details:
|
| Weight Capacity: | 2500LBS | Welded Style: | Spot Welded |
|---|---|---|---|
| Aperture: | 1/4 | Netting: | In Panels Or In Rolls |
| Hole Shape: | Square, Rectangular | Wire Dia.: | From 0.8mm Up To 5.5mm |
| Material: | Low Carbon Steel, Galvanized Steel, Stainless Steel | Packing: | On Pallet Or In Bulk,wrapped With Shrink Film. |
| High Light: | 1/4" stainless steel welded mesh panels,customized stainless steel welded mesh panels,1/4" aperture welded wire fence panels |
||

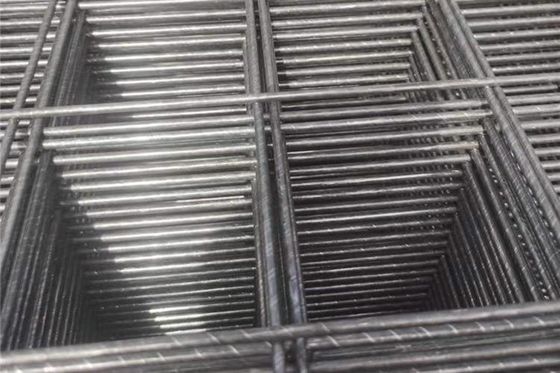

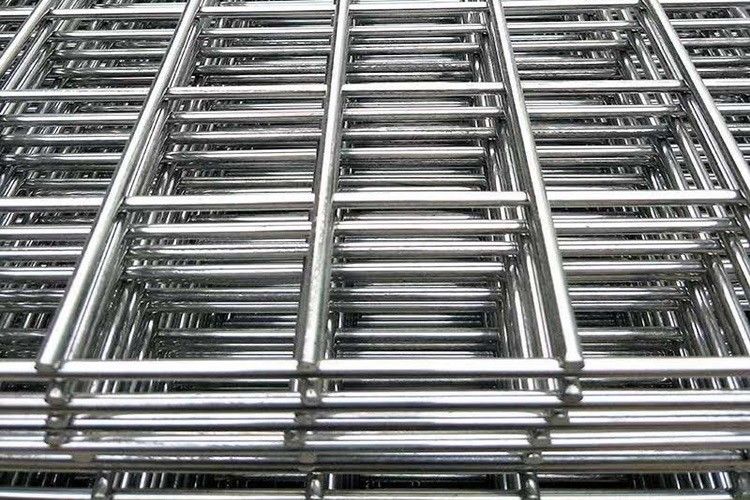

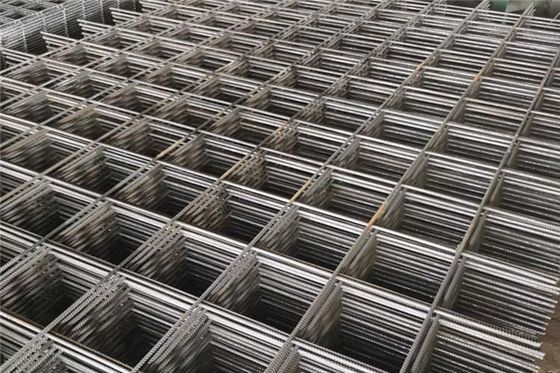

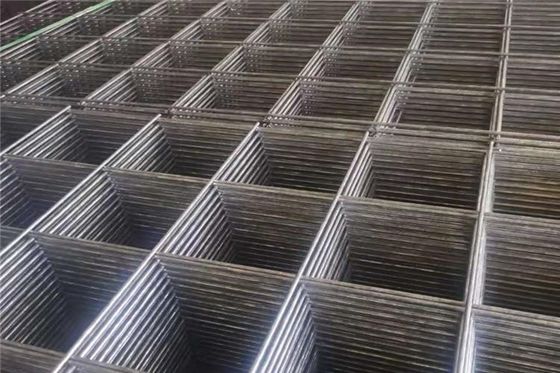

The Welded Wire Mesh Panels are a versatile and durable product used in various industries for a wide range of applications. Made from high-quality materials, these panels provide strength, stability, and long-lasting performance.
The Welded Wire Mesh Panels are available in three different materials - Low Carbon Steel, Galvanized Steel, and Stainless Steel. Each material has its unique properties and can be chosen based on the specific requirements of the project.
The Welded Wire Mesh Panels are spot welded, ensuring a strong and secure connection between the wires. This welded style provides stability and prevents the wires from shifting or coming loose.
Choose Welded Wire Mesh Panels for your next project and experience the benefits of a versatile and high-quality product. Our product is widely used in industries such as construction, agriculture, manufacturing, and more. We also offer customization options to meet your specific requirements. Place your order now and get top-quality Galvanized Wire Mesh Sheets and Reinforcement Mesh Sheets at competitive prices.
| Commonly Used Specifications | ||||
| Mesh Opening in (Center to Center) | Wire Diameter | Panel Size in | Material | |
| in | mm | |||
| 1/4“ | 0.032 | 0.8 | 48" x 1200" | Stainless Steel 304 |
| 1/4“ | 0.025 | 0.6 | 36" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 36" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 48" x 1200" | Galvanized After |
| 1/2" | 0.063 | 1.6 | 48" x 1200" | Stainless Steel 304 |
| 1/2" | 0.063 | 1.6 | 60" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 72" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 60" x 1200" | Galvanized After |
| 1" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 1" | 0.08 | 2.0 | 48" x 1200" | Pre-Galvanized |
| 1" | 0.063 | 1.6 | 48" x 1200" | Pre-Galvanized |
| 1" | 0.105 | 2.7 | 48" x 96" | Carbon Steel |
| 1" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 1" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 1" | 0.118 | 3.0 | 60" x 120" | Carbon Steel |
| 1" | 0.101 | 2.6 | 48" x 96" | Galvanized After |
| 1" | 0.122 | 3.1 | 48" x 96" | Galvanized After |
| 1-1/2" | 0.135 | 3.4 | 48" x 120" | Carbon Steel |
| 1-1/2" | 0.135 | 3.4 | 60" x 120" | Carbon Steel |
| 1-1/2" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 1-1/2" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 48" x 120" | Carbon Steel |
| 2" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 2" | 0.189 | 4.8 | 48" x 96" | Galvanized After |
| 2" | 0.159 | 4.0 | 48" x 96" | Galvanized After |
| 2" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 2" | 0.122 | 3.1 | 60" x 120" | Galvanized After |
| 2" | 0.122 | 3.1 | 48" x 96" | Galvanized After |
| 2" | 0.122 | 3.1 | 48" x 120" | Galvanized After |
| 2" | 0.101 | 2.6 | 48" x 96" | Galvanized After |
| 2" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | 60" x 120" | Carbon Steel |
| 2" | 0.063 | 1.6 | 48" x 1200" | Galvanized After |
| 2" | 0.118 | 3.0 | 72" x 144" | Carbon Steel |
| 2" | 0.135 | 3.4 | 48" x 120" | Carbon Steel |
| 2" | 0.105 | 2.7 | 48" x 96" | Carbon Steel |
| 2" | 0.135 | 3.4 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | .118" | Carbon Steel |
| 2" | 0.135 | 3.4 | 60" x 120" | Carbon Steel |
| 2" | 0.155 | 3.9 | 48" x 96" | Carbon Steel |
| 2" | 0.155 | 3.9 | 60" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 60" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 60" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 48" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 48" x 96" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 120" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 96" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 144" | Carbon Steel |
KDL Welded Wire Mesh Panels are a high-quality and durable product that is widely used in various applications. Our panels are known for their superior strength and reliability, making them a popular choice among customers. And the Welded Wire Mesh Panels have a wide range of applications and can be used in various scenarios, including:
KDL Welded Wire Mesh Panels are a versatile and reliable product that can be used in many different applications and scenarios. With our high-quality standards and certifications, customers can trust in the durability and performance of our panels. Place your order today and experience the quality of KDL Welded Wire Mesh Panels.
The Welded Wire Mesh Panels are packed in bundles or on pallets, wrapped with plastic film and secured with straps or steel bands to ensure safe transportation. Each bundle or pallet is labeled with product information for easy identification.
To protect the panels from damage during shipping, they are loaded into containers or onto trucks with care and caution. The panels can also be loaded onto flatbed trailers for long-distance transportation.
Customized packaging and labeling options are available upon request.
