High Strength Woven Tantalum Wire Mesh For Capacitors Corrosion Resistance
Tantalum (Tan) Woven Wire Mesh Used for Capacitors with Superior Corrosion Resistance
As a rare precious metal, Tantalum is ductile with superior corrosion resistance. It is an excellent conductor of electricity and heat with a high melting point. Commonly used for capacitors, surgical implants, chemical equipment, nuclear reactors, aircraft parts, and electronic equipment.
Electronic Industry Applications
The electronic industry is the primary field for Tan Wire and Mesh, typically used to make the anode leader of electrolytic capacitors. Approximately 65% of the world's Tantalum is applied to this field. High antioxidant crispy wire can also be used to make rigid foil capacitors, functioning effectively under high-temperature conditions up to 772°C and special high flash conditions (350V). Additionally, Tan wire serves as a vacuum electron cathode emitter, ion sputtering, and spraying material.
Chemical Composition
The smallest diameter of Tan Wire is 0.10mm, suitable for vacuum high-temperature furnace heating parts and woven into specified wire mesh. Below is the chemical composition of this rare precious metal:
| Grade |
C |
N |
O |
H |
Fe |
Si |
Ni |
Ti |
Mo |
W |
Nb |
Tan |
| Tan1 |
0.01 |
0.005 |
0.015 |
0.0015 |
0.005 |
0.005 |
0.002 |
0.002 |
0.01 |
0.01 |
0.05 |
Balance |
| Tan2 |
0.02 |
0.025 |
0.03 |
0.005 |
0.03 |
0.02 |
0.005 |
0.005 |
0.03 |
0.04 |
0.1 |
Balance |
Tan Wire Mesh Characteristics
Tan Wire Mesh is made of pure tantalum wire or tantalum alloy wire, offering excellent characteristics for wire mesh applications. Our Tan wire mesh features:
- Stabilized filtering characteristics
- Exceptional corrosion resistance
- High density and ductility
- Superior hardness
- Chemical resistance below 150°C (soluble only in hydrofluoric acid)
Tan Wire Mesh Applications
- Metallurgical and chemical processing equipment
- Screening and filtering in acidic and alkaline environments
- Gas-liquid filtration and media separation processes
- Prosthetic implants and medical devices
- Vacuum furnace heating elements
- Chlorinator springs
Commonly Used Tan Woven Wire Mesh Specifications
| Mesh |
Wire Diameter (mm) |
Weaving Type |
Mesh Opening (mm) |
Open Area |
| 8 * 8 |
0.508 |
Plain |
2.667 |
70.6 |
| 14 * 14 |
0.4064 |
Plain |
1.4072 |
60.2 |
| 30 * 30 |
0.0762 |
Plain |
0.7696 |
82.8 |
| 35 * 35 |
0.1981 |
Twilled |
0.5283 |
52.9 |
| 50 * 50 |
0.0762 |
Plain |
0.4318 |
72.3 |
| 80 * 80 |
0.0762 |
Plain |
0.2413 |
57.8 |
| 100 * 100 |
0.0762 |
Twilled |
0.1778 |
49 |
Attention: Be careful of sharp edges when cutting and handling the mesh to avoid injury. Before ordering, please check our stock list for available over-run bargain rolls at reduced prices.
King De Long Wire Mesh manufactures both woven and welded wire mesh in specified wire and mesh sizes. We also offer additional services including pleating, slitting, cutting, punching, forming, oil painting, and powder coating to meet your exact requirements.

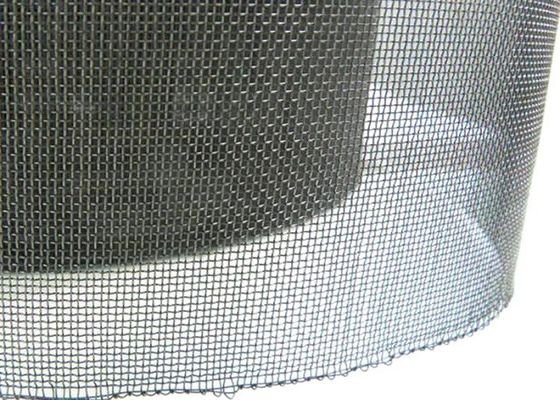

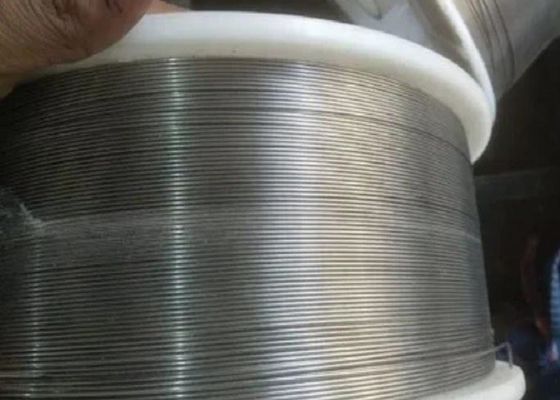

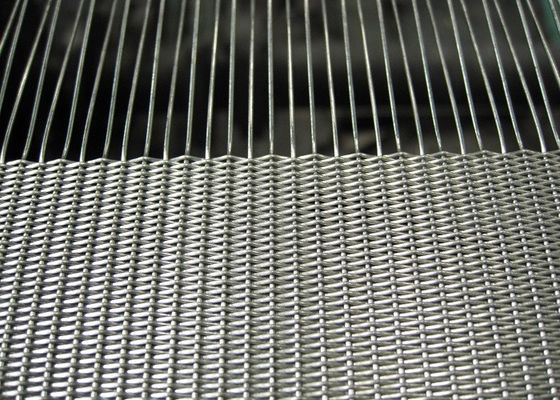

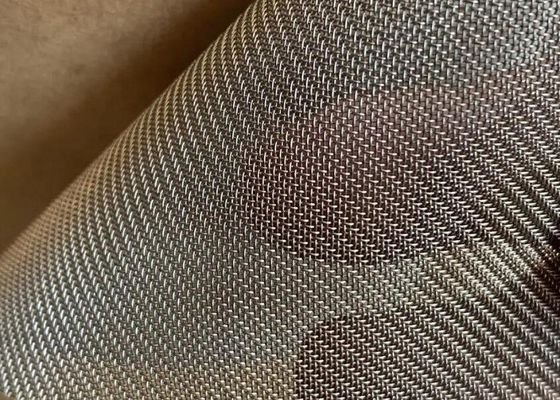

Product and Factory Images
