Product Details:
|
| Product Name: | Retangle Hole PVC Coated Welded Mesh Rolls For General Garden Fencing | Material: | Carbon Steel Wire, Galvanized Wire, Stainless Steel 304/316 Wire |
|---|---|---|---|
| Hole Size: | 1/2''*1'', 1"X1"，and Accepted Customed | Wire: | 0.35-6.0mm |
| Width: | 1m, 1.22m, 1.5m, 2m | Length: | 10m,15m, 20m, 25m, 30m |
| Color: | Green, Black Green | Production Process: | Row Welding |
| Feature: | Easily Assembled, Anti-rust, Anti-corrosion | Usage: | Animal Fences, Protection Of Mechanical Equipment, Highway Guardrails, Fencing Of Stadiums, Road Fencing, Etc |
| Tensile Strength: | 300–450 N/mm2 | Elongation: | Min. 15% |
| Highlight: | Retangle Hole Welded Mesh Rolls,Welded Wire Fence Roll Anti Corrosion,Welded Mesh Rolls Anti Corrosion |
||

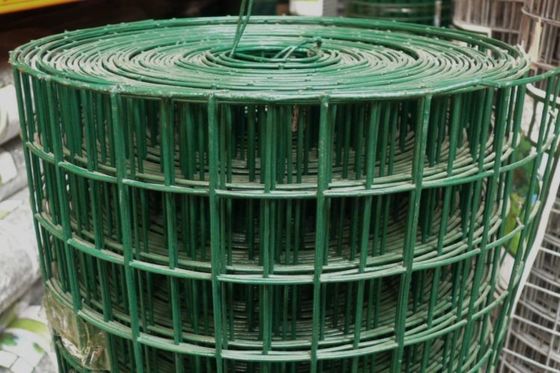

Retangle Hole PVC Coated Welded Mesh Rolls for General Garden Fencing
Products description:
Welded wire mesh can be made into rolls or sheets. The surface of welded wire mesh can be dipped or sprayed with vinyl powder. A protective film can be formed on the surface of the welded wire mesh, and it can effectively isolate the metal wire from the outside water or corrosive substances, increase the service time, and there are difference of colors for you to choose, and then it makes the mesh surface show different colors, make your yard looks beautiful. The PVC coated welded wire mesh is usually used outdoors for protection.
Production process:
Plastic spraying refers to a surface treatment method of spraying plastic powder on products. Plastic spraying is also known as electrostatic powder spraying. It uses a metal electrostatic trigger to make the plastic powder charged, adsorb it on the surface of the metal piece, and then through 180~220 ℃ baking, make the powder melt and adhere to the surface of the metal piece. Plastic spraying products are mostly used for indoor boxes, and the paint film has a flat or matte effect.
Advantages:
It has the characteristics of anti-corrosion, rust prevention, acid and alkali resistance, moisture-proof, insulation, aging resistance, good feel, environmental protection, long service life, etc.
Specifications:
| Wire Diameter | Hole Size | ||
| before coated | after coated | inch | mm |
| 2.2mm | 2.6mm | 4" x 4" | 101.6mm x 101.6mm |
| 2.2mm | 2.6mm | 4" x 3" | 101.6mm x 76.2mm |
| 2.0mm | 2.5mm | 4" X 2" | 101.6mm x 50.8mm |
| 1.9mm | 2.4mm | 3" X 2" | 76.2mm x 50.8mm |
| 1.9mm | 2.4mm | 2" X 2" | 0.8mm x 50.8mm |
| 1.9mm | 2.4mm | 2" X 1" | 50.8mm x 25.4mm |
| 0.8mm | 1.1mm | 1/2" X 1/2" | 2.7mm x 12.7mm |
| - | - | 3/4" X 3/4" | 19mm x 19mm |
| 0.6mm | 0.9mm | 1/4" x 1/4" | 6.35mm x 6.35mm |
