|Product Name:||Hardware Cloth, Galvanized Welded Wire Mesh Panels Used As Security Fencing||Material:||Low Carbon Steel Wire, Galvanized Wire|
|Hole Size:||3"x0.5",12.5x75mm,13x75mm, Also Accept Customed||Hole Type:||Rectangle, Square|
|Wire Diameter:||3mm To 6mm||Width:||2m，2.5m，3m, Also Accept Customed|
|Length:||1.8m，2.0m，2.4m，2.7m，3.0m，4.0m，5.2m||Feature:||Corrosion Resistance, Long-life, Skilled Welded By High Quality|
|Package:||Plastic Film, Then On The Wooden/steel Pallets||Certification:||ISO, SGS, CE|
customization Welded Wire Mesh Sheets,
Customization Weldmesh Security Fencing,
Welded Wire Mesh Sheets 5.2m

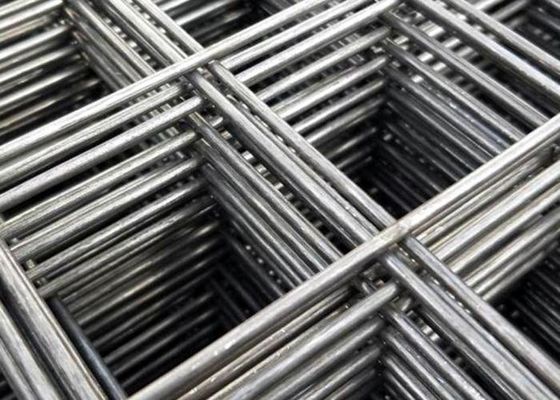

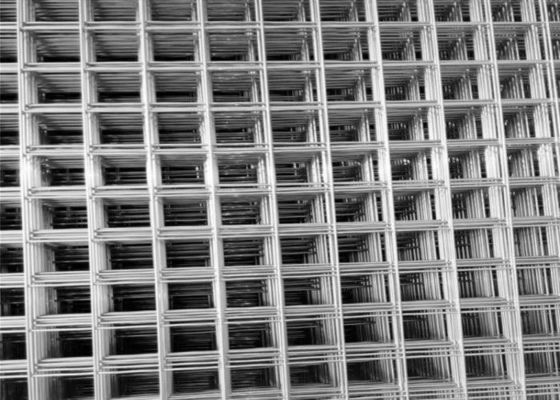

Hardware Cloth, Galvanized Welded Wire Mesh Panels Used as Security Fencing
Galvanized welded mesh panels are welded with high-quality low-carbon steel wire and Q195 steel wire. Generally, the aperture of welded mesh is 50mm * 5mm or 100mm * 100mm; The wire diameter is roughly between 2mm and 5mm; Mesh size: 1m * 1m, 1m * 2m, 1.8m * 3m, 2m * 2m. General users will choose different mesh sizes according to different uses. The difference between galvanized welded wire mesh and general welded wire mesh panels is that one is rolled wire mesh, the other is panel mesh, and the wire diameter of welded wire mesh panels is generally 2-10mm, which is relatively thick. The galvanized process can be galvanized before welding, or welded before galvanizing. The color is bright and the ecology is beautiful after plastic dipping. Welding before galvanizing refers to the selection of high-quality iron wire, which is made by precise automatic mechanical welding, and then galvanized (electro-galvanized or hot dipped galvanized) after the welded mesh panels is formed; galvanizing before welding refers to the selection of high-quality galvanized iron wire through precise automatic mechanical welding. The price of galvanized welded mesh depends on wire diameter, mesh and material. The normal tolerance of the wire diameter of the welded mesh produced by our factory is ± 0.03mm, the mesh is accurate and error-free, and the material is according to the customer's requirements. Welcome to call or email for price and cooperation.
Material of galvanized welded wire mesh panels: galvanized wire, modified wire, black wire, ordinary low carbon steel wire.
Types of galvanized welded wire mesh panels: stainless steel mesh, black wire mesh, galvanized wire mesh, and PVC coated mesh.
Features of galvanized welding wire mesh panels:
It is also very advanced in welding technology. It is precisely welded by computer programming. It has the characteristics of uniform mesh surface, fine mesh, rust resistance, long service life, etc., low cost of electric welding mesh, convenient and fast construction
Production process of galvanized welded mesh panels:
High-quality low-carbon steel wire rod can be drawn into two kinds of bright wire and black wire. The machine mesh, width and length of the welded mesh shall be adjusted according to the customer's requirements. The welded wire mesh panels shall be flat, firmly welded and uniform in size.
Specification of galvanized welded mesh panels:
|Wire diameter||Hole size||Surface treatment||Width||Length||Color|
|0.30-2.50mm||1/4'', 1/2'', 3/4'', 1'', 1-1/2'', 2'', 3''||
Galvanized/hot dipped galvanized,
|0.8m, 0.9m, 1m, 1.2m, 1.5m etc||10m, 15m, 20m, 25m, 30m etc||green, black, dark green, white,etc|
Common specifications mainly include:
Generally, the width is 1 meter and the length is 2 meters. The mesh aperture is 2 cm, 5 cm, 10 cm, 15 cm, 20 cm, and other specifications, and the diameter of cold drawn wire for mesh is 2 mm, 2.5 mm, 3 mm and other common specifications.
Application of galvanized welded wire mesh panels:

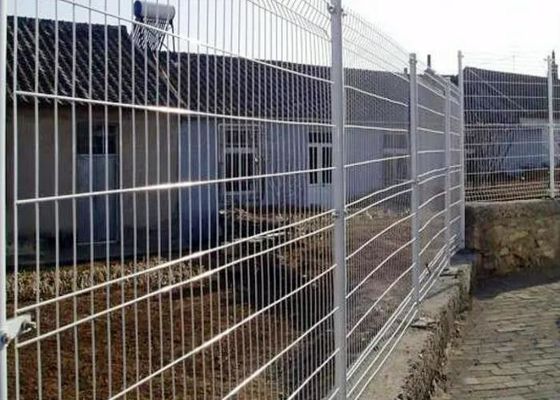

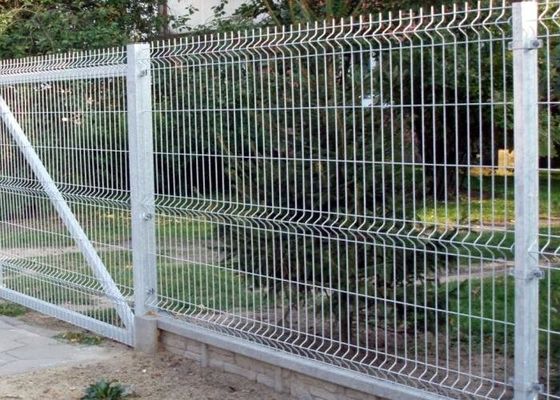

Thermal insulation and crack prevention engineering of geothermal roof wall in construction site, protection engineering of highway and railway community, poultry breeding industry, mechanical protection engineering, etc.
