Product Details:
|
| Certification: | ISO, SGS | Product Name: | Heavy Duty Zn-5 Al Welded Mesh Panels Used For The Gabion Retaining Wall |
|---|---|---|---|
| Materilal: | Galfan Wire, Hot Dipped Galvanized Wire | Surface: | Hol Dippped Galvanized, PVC Coated |
| Wire Diamter: | 2.5-3.7mm | Width: | 1m, 2m |
| Length: | 1m, 2m | Hole Size: | 50*70, 50*100 |
| Color: | Bright Silver | Hole Shape: | Square, Retangle |
| Packing: | With Pallet | Application: | Construction, Protection |
| High Light: | Zn-5 Al Galvanized Welded Wire Mesh,ISO45001 Galvanized Welded Wire Mesh,ISO45001 Welded Wire Mesh Panels |
||
Heavy Duty Zn-5 Al Welded Mesh Panels Used For The Gabion Retaining Wall
Product introduction:

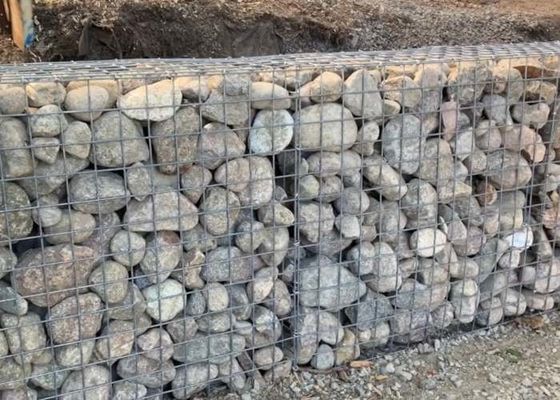

Zn-5Al welded gabion net is a metal cage or box filled with stones or other general earth materials, which is often used as a retaining wall or other outdoor wall. It is usually made of stainless steel, galvanized or powder-coated wire mesh, and then connected together with spiral adhesive or ring fasteners to form a rectangular shape.
Product process:
Zn-5Al welded gabion adopts the patented technology of HAIPA (plating before welding) without rust; The high-quality aluminum-zinc alloy steel wire (coating 450g/㎡) is welded into mesh. According to the project requirements, the box structure is assembled by fasteners. Note that the difference from the traditional production process is plating before melting. The shear strength of the fusion joint is more than 250 Mpa, and the appearance of the product is flat and beautiful. It is mainly used in landscape, municipal engineering, villa beautification, ecological repair and other projects.
Products application:

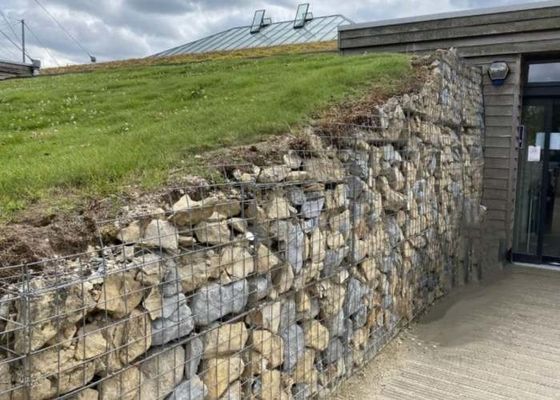

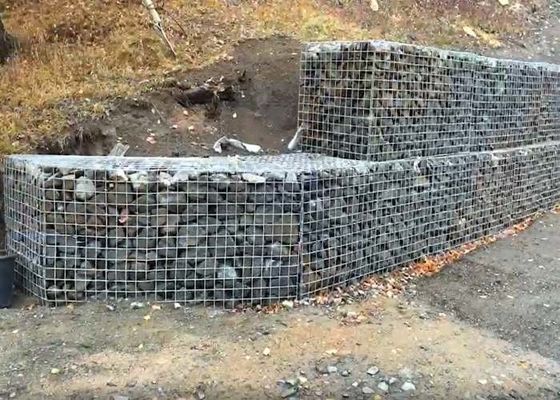

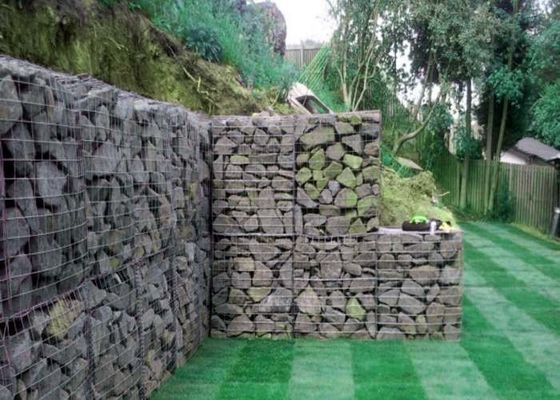

River protection, ecological maintenance, highway retaining wall, subgrade support, residential quarter, villa, residential greening, airport, park landscape ecological protection type, municipal and public landscape.
Products advantages:
Easy to install, long to use, beautiful, and has the characteristics of sustainable development.
Products specifications:
| Hole (mm) | Size (m) |
| 50×70 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 50×75 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 50×100 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 50x75 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 75x75 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 75x100 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| 100x100 | 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m |
| NOTE: customed sizes are accepted | |
