Product Details:
|
| Aperture: | 1/4 | Netting: | In Panels Or In Rolls |
|---|---|---|---|
| Application: | Construction Wire Mesh, Protecting Mesh, Cages | Welded Style: | Spot Welded |
| Weight Capacity: | 2500LBS | Hole Shape: | Square, Rectangular |
| Color: | Natural Color Or Painting Color | Wire Dia.: | From 0.8mm Up To 5.5mm |
| High Light: | 1/4 galvanized welded wire mesh sheets,construction galvanized welded wire mesh sheets,low carbon welded wire fence panels |
||

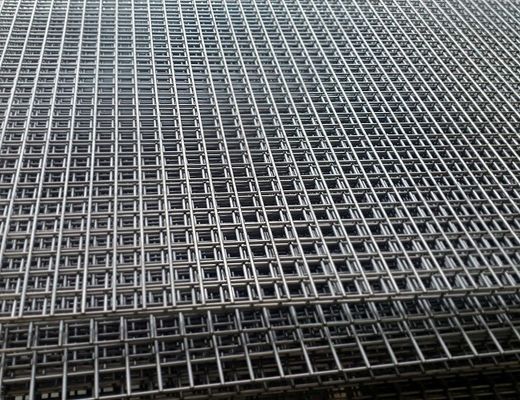

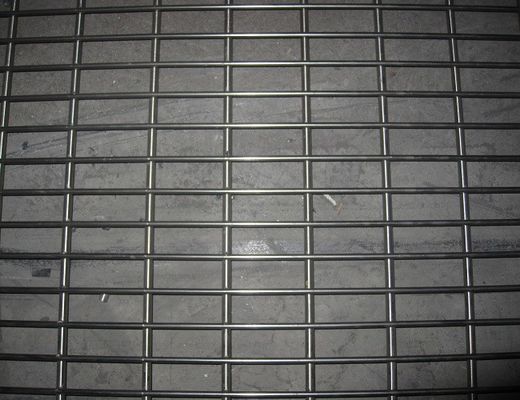

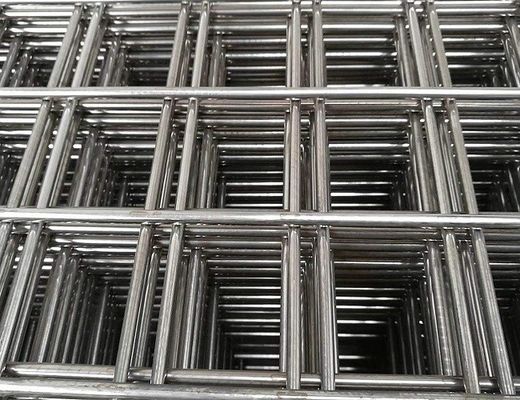

Welded Wire Mesh Panels, also known as Galvanized Wire Mesh Sheets or Electric Welded Wire Panels, are an essential construction material that offers a wide range of applications. Made from high-quality galvanized wire, these panels are welded together to create a strong and durable mesh structure.
The aperture, or the size of the openings in the mesh, of Welded Wire Mesh Panels is typically 1/4 inch, making it suitable for a variety of applications. The hole shape can be square or rectangular, providing flexibility for different construction needs.
Our Welded Wire Mesh Panels are available in a range of wire diameters, starting from 0.8mm and going up to 5.5mm. This allows for customization based on the specific requirements of your project.
With a weight capacity of 2500LBS, our Welded Wire Mesh Panels are strong and durable enough to withstand heavy loads. This makes them the perfect choice for construction projects that require high levels of support and reinforcement.
Welded Wire Mesh Panels are made from high-quality galvanized wire, making them resistant to rust and corrosion. This ensures their longevity and durability, even in harsh environmental conditions. Additionally, the panels are versatile and can be used in various construction applications, providing a cost-effective and efficient solution.
Our Welded Wire Mesh Panels are designed for easy installation, allowing for quick and efficient construction. The panels can be easily cut and shaped to fit any space, reducing installation time and costs.
In conclusion, Welded Wire Mesh Panels are a durable and versatile construction solution with a range of applications. With their high weight capacity, easy installation, and customizable features, they are an essential material for any construction project.
| Commonly Used Specifications | ||||
| Mesh Opening in (Center to Center) | Wire Diameter | Panel Size in | Material | |
| in | mm | |||
| 1/4“ | 0.032 | 0.8 | 48" x 1200" | Stainless Steel 304 |
| 1/4“ | 0.025 | 0.6 | 36" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 36" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 48" x 1200" | Galvanized After |
| 1/2" | 0.063 | 1.6 | 48" x 1200" | Stainless Steel 304 |
| 1/2" | 0.063 | 1.6 | 60" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 72" x 1200" | Galvanized After |
| 1/2" | 0.041 | 1.0 | 60" x 1200" | Galvanized After |
| 1" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 1" | 0.08 | 2.0 | 48" x 1200" | Pre-Galvanized |
| 1" | 0.063 | 1.6 | 48" x 1200" | Pre-Galvanized |
| 1" | 0.105 | 2.7 | 48" x 96" | Carbon Steel |
| 1" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 1" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 1" | 0.118 | 3.0 | 60" x 120" | Carbon Steel |
| 1" | 0.101 | 2.6 | 48" x 96" | Galvanized After |
| 1" | 0.122 | 3.1 | 48" x 96" | Galvanized After |
| 1-1/2" | 0.135 | 3.4 | 48" x 120" | Carbon Steel |
| 1-1/2" | 0.135 | 3.4 | 60" x 120" | Carbon Steel |
| 1-1/2" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 1-1/2" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 48" x 120" | Carbon Steel |
| 2" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 2" | 0.189 | 4.8 | 48" x 96" | Galvanized After |
| 2" | 0.159 | 4.0 | 48" x 96" | Galvanized After |
| 2" | 0.122 | 3.1 | 72" x 144" | Galvanized After |
| 2" | 0.122 | 3.1 | 60" x 120" | Galvanized After |
| 2" | 0.122 | 3.1 | 48" x 96" | Galvanized After |
| 2" | 0.122 | 3.1 | 48" x 120" | Galvanized After |
| 2" | 0.101 | 2.6 | 48" x 96" | Galvanized After |
| 2" | 0.118 | 3.0 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | 60" x 120" | Carbon Steel |
| 2" | 0.063 | 1.6 | 48" x 1200" | Galvanized After |
| 2" | 0.118 | 3.0 | 72" x 144" | Carbon Steel |
| 2" | 0.135 | 3.4 | 48" x 120" | Carbon Steel |
| 2" | 0.105 | 2.7 | 48" x 96" | Carbon Steel |
| 2" | 0.135 | 3.4 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | .118" | Carbon Steel |
| 2" | 0.135 | 3.4 | 60" x 120" | Carbon Steel |
| 2" | 0.155 | 3.9 | 48" x 96" | Carbon Steel |
| 2" | 0.155 | 3.9 | 60" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 60" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 60" x 120" | Carbon Steel |
| 2" | 0.25 | 6.4 | 48" x 96" | Carbon Steel |
| 2" | 0.118 | 3.0 | 48" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 48" x 120" | Carbon Steel |
| 2" | 0.187 | 4.7 | 48" x 96" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 120" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 96" | Carbon Steel |
| 3" | 0.162 | 4.1 | 48" x 144" | Carbon Steel |
When it comes to high-quality and durable reinforcement mesh sheets, the Welded Wire Mesh Panels from KDL are the top choice. Made from fused wire mesh panels, these welded steel mesh panels are designed to provide excellent strength and stability for various construction and industrial applications.
One of the main applications of Welded Wire Mesh Panels is in construction sites. These panels are used as reinforcement for building foundations, concrete slabs, and road pavements, providing excellent strength and stability to the structures.
Welded Wire Mesh Panels are also commonly used as security fences in industrial and commercial properties. Their sturdy construction and durability make them an ideal choice for boundary protection.
In the agricultural sector, Welded Wire Mesh Panels are used as fencing for livestock and crops. They provide a strong barrier against animals and pests while still allowing for proper air and light flow.
In industrial settings, Welded Wire Mesh Panels are used as partitions to separate different areas and provide a safe working environment. They are also used as cages for storage and transportation of goods.
Welded Wire Mesh Panels are not only functional but also aesthetically pleasing. They can be used as decorative mesh in various architectural and interior design applications, adding a unique and modern touch to any space.
Overall, KDL Welded Wire Mesh Panels are a versatile and essential product for various applications and scenarios. With their superior quality, reliability, and versatility, they are the top choice for construction, industrial, and decorative purposes. Order now and experience the difference in quality and performance with KDL Welded Wire Mesh Panels.

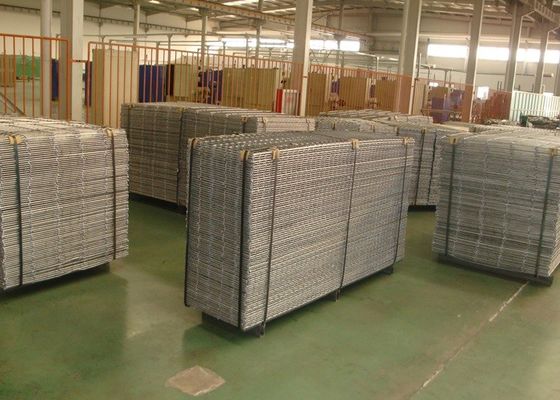

Welded wire mesh panels are typically packaged in bundles or rolls and securely wrapped in plastic or woven material to prevent damage during transit.
For smaller quantities, the panels may be packaged in cardboard boxes with foam padding for added protection.
When shipping larger quantities, the panels are usually loaded onto pallets and secured with strapping or shrink wrap for safe transportation.
The panels can be shipped via truck, rail, or ocean freight depending on the destination and customer's preference.
Special packaging and shipping requirements can be accommodated upon request.
