Product Details:
|
| Product Name: | High Strength And Toughness Woven Wire Mesh Screen Phosphor Bronze Mesh | Material: | Cu：85-90%, Sn: 5-15%, ... |
|---|---|---|---|
| Woven Type: | Plain Weave,Twilled Weave | Wire Diameter: | From 0.032mm To 2.5mm |
| Width: | From 0.6m To 1.5m | Length: | 15m, 30m, Also Accept Customed Size |
| Mesh Count: | From 2 Mesh To 350 Mesh | Feature: | Non Magnetic, Wear-resistant, Acid And Alkali Resistant, Good Ductility |
| Application: | Screening Of Mining, Metallurgy, Construction, And Medicinal Materials | Inventory Status: | Some Specifications Are In Stock And Some Not |
| High Light: | High Strength Woven Wire Mesh Screen,High Toughness Woven Wire Mesh Screen,High Strength Phosphor Bronze Mesh |
||
High Strength and Toughness Woven Wire Mesh Screen Phosphor Bronze Mesh
Product Introduction:

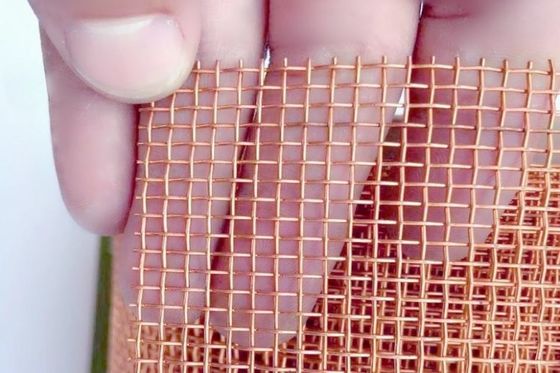

Copper mesh, also known as copper wire mesh, copper filter mesh, copper wire mesh; it is made of copper wire interwoven by warp and weft, with square or rectangular mesh holes. The mesh size can be from 2 mesh to 350 mesh; mesh width can be from 3mm to 2000mm. Copper wire mesh punching can be processed into circular, elliptical, square, rectangular, triangular, trapezoidal and other special shapes. The wire mesh punching can be produced according to the users’ drawings. Copper mesh can also be divided into brass mesh (copper zinc alloy mesh), copper mesh (pure copper mesh), and bronze mesh (tin bronze mesh) based on raw materials. Due to their excellent seawater corrosion resistance, many copper alloys, such as aluminum bronze, manganese bronze, aluminum brass, gun copper (tin zinc bronze), white steel, and nickel copper alloy (Monel alloy), have become standard materials for shipbuilding.
Product application:
Copper mesh is often used for filtering liquids or particles in weak acid or alkaline environments, industrial equipment electrodes, battery industry electrodes, and radio signal shielding.
Chemical composition & physical property:
| Item | Chemical Composition | ||||||||
| Grade | Cu | Sn | Pb | P | Al | Fe | Si | Sb | Bi |
| Bronze | left | 6-7% | ≤0.2 | 0.1-0.25 | ≤0.002 | ≤0.05 | ≤0.002 | ≤0.002 | ≤0.002 |
| Grade | Physical Property | ||||||||
| Bronze | T.S. Mpa | EL. % | |||||||
| ≥470 | ≥13 | ||||||||
Why choose KDL be your long-term and stable wire mesh supplier?
As a highly-accomplished welded mesh exporter, KDL was established jointly by China and South Korea in 1986. Our strategic location in Anping County, Hebei province is only 300KM away from Beijing and Tianjin, which offers us very competitive advantages both in trade and logistics. Covering an area of over 200,000m2, certificated by ISO 9001, ISO 14001, ISO 45001, SGS etc, as well as more than 50 diversified welded mesh production machines, which are either imported from European countries or developed in-house.
As long as you put forward your needs on wire mesh , KDL can give the biggest support. We sincerely look forward to working with you for a win-win situation, call us, and cooperation will begin now!
