Product Details:
|
| Product Name: | AISI304 Stainless Steel Fine Wire Mesh Used In Air And Grease Filter Applications | Material: | Stainless Steel AISI304, AISI316, 314, 309, 430, Etc. |
|---|---|---|---|
| Woven Type: | Plain Weave, And Twilled Weae | Inventory Status: | Some Specifications Are In Stock And Some Not |
| Standard Roll Size: | 1m*25m/30m/50m/60m, 1.22m*30.5m, 1.5m*30m | Max Width: | 8 Meters |
| High Light: | 120mesh Stainless Steel Filter Mesh,120mesh stainless steel filter screen,Stainless Steel Filter Mesh Anti Alkali |
||

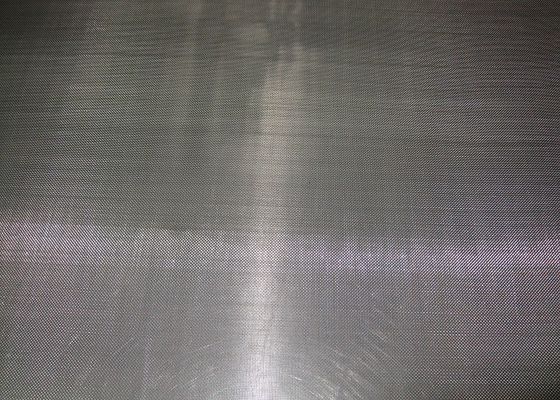

AISI304 Stainless Steel Fine Wire Mesh Used in Air and Grease Filter Applications
At a certain stage of production, many industries need to separate, sieve, or grade their raw materials or products. To do this, the woven wire mesh is very widely used as a filtration media. Stainless Steel is a highly durable material, being great resistance to corrosion and very strong. So it is often used to weave various wire mesh for these filtration applications in modern industries, such as:
Oil- and gas industry
Petrochemical industry
Chemical Industry
Water Treatment
Food industry
Refineries
King De Long Wire Mesh Company is one of the leading wire mesh manufacturers, especially good at stainless steel and copper woven wire mesh, or called filter mesh. They are more often used to make the filters by our customers, due to their superior precision, high tensile strength, great corrosion resistance, and other advantages. Besides, they could be used to make so many other filters as follows:
Fuel Filters
Freon Filters
Water Filters
Coolant Filters
Lubricant Filters
Cutting Oil Filters
Hydraulic Fluid Filters
Liquefied Propellant Filters
Stainless steel is the most popular used metal for wire mesh and filters, due to these important features:
Strong Rigidity
Great Level of Stability
Advanced Abrasion Resistance
Chemical and Thermal Resistance
Smooth Surface Structure
No Particle Detachment
Great Reliability
Easy to Clean
There are so many types of stainless steel filter mesh, different woven types, and meshes size. According to the different mesh sizes, we could make several simple grades, coarse mesh, fine mesh, and super fine mesh. The coarse mesh is normally from 1mesh to 60mesh, fine mesh from 60 to 120mesh, and a super fine mesh is from 120mesh to 500mesh. For these meshes, Plain Weave and Twilled Weave are the most commonly used weave type.
Here are some very commonly used Stainless Steel Fine Mesh specifications, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.
| Commonly Used Stainless Steel Fine Mesh specifications | ||||
| Mesh Count | Aperture (mm) | Diameter (mm) | Open Area % | Weight kg/m2 |
| 60 | 0.3 | 0.16 | 38.70 | 0.76 |
| 70 | 0.3 | 0.08 | 62.50 | 0.20 |
| 70 | 0.2 | 0.14 | 37.72 | 0.69 |
| 70 | 0.2 | 0.16 | 31.30 | 0.89 |
| 80 | 0.2 | 0.13 | 36.80 | 0.62 |
| 80 | 0.2 | 0.14 | 31.30 | 0.78 |
| 84 | 0.2 | 0.06 | 62.67 | 0.17 |
| 84 | 0.2 | 0.09 | 49.40 | 0.34 |
| 100 | 0.198 | 0.056 | 60.77 | 0.16 |
| 100 | 0.154 | 0.100 | 36.80 | 0.50 |
| 100 | 0.142 | 0.112 | 31.30 | 0.62 |
| 120 | 0.149 | 0.063 | 49.33 | 0.24 |
| 120 | 0.122 | 0.090 | 33.00 | 0.48 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. There is a department in our factory to handle the Stamping, Shearing, Welding, Punching, etc, to produce small discs, filters, strainers, baskets, cylinders, and screens to your exact specifications. Should you have a particular specification in mind, please contact us to discuss your requirements.

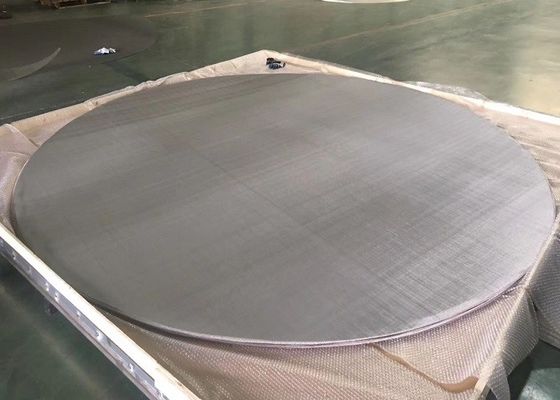

For your reference, some photos of our products and factory are listed here, please check.
