Product Details:
|
| Product Name: | Stainless Steel Filter Mesh With Effective Filtration For A Wide Range Of Applications | Material: | Stainless Steel, Such As AISI304, 316, 410, 309, 314, Etc. |
|---|---|---|---|
| Woven Type: | Plain Weave, Twilled Weae, Or Dutch Weave | Inventory Status: | Some Specifications Are In Stock And Some Not |
| Standard Roll Size: | 1m*25m/30m/50m/60m, 1.22m*30.5m, 1.5m*30m | Max Width: | 8 Meters |
| High Light: | Stainless Steel Filter Mesh Multipurpose,Effective Filtration tainless Steel Filter Mesh,60 micron stainless steel mesh Multipurpose |
||

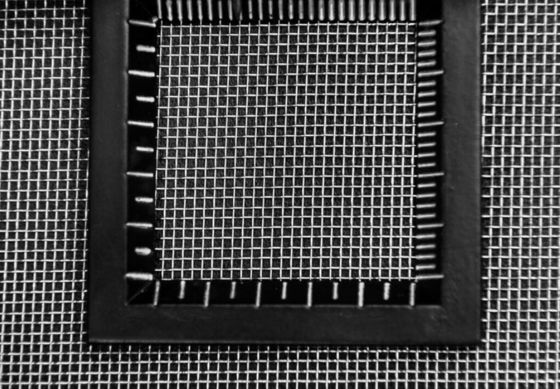

Stainless Steel Filter Mesh with Effective Filtration for a Wide Range of Applications
The Stainless Steel Woven Wire Mesh is so popularly used in all industries, and that used for filtration or separation is also called Stainless Steel Filter Mesh.
Our Stainless Steel Filter Mesh is very useful in a wide range of applications that require a variety of openings with great precision, especially for the Petrochemical Industry, and other related industries. These stainless steel filter mesh can be used in filter elements, conjunct with perforated or expanded metal. They are ideal for filtration used in adverse environmental conditions. The Stainless Steel Filter Mesh is durable, cleanable, and reusable, making it an economical choice for most filtering projects.
Our Stainless Steel Filter Mesh could be made to order, with various sizes, including the wire dia. and mesh count. As we talked in our previous pages, there are several weaving types available, such as plain weave, twilled weave, plain dutch weave, twilled dutch weave, and reverse dutch weave. These filter mesh could be cutted or punched into required shapes and sizes, sintered, slitted, pleated, welded, and rolled to size. In our factory, there is a department, which would handle such work, in accordance with customers' requirements.
Features of Stainless Steel Filter Mesh:
These meshes could be custom fabricated to the required shape or size.
The filter mesh could be stamped or cut to size easily.
There are various mesh openings available.
Besides the stainless steel AISI304, many other types of stainless steel are also available, such as 316, 410, 309, 314, etc.
Stainless Steel Filter Mesh is also used in:
Air Vents
Strainers
Sifting, Sizing
Filter Baskets
Faucet Screens
Insect Screens
Oil or Gas industries
Solvents, water treatment
Decorative Wire Mesh Grilles for Architecture
Stainless Steel Filter Mesh is suitable for almost all areas of industry, including chemicals, pharmaceuticals, plastics, mechanical engineering, mining, food processing, etc.
Here are some very commonly used Filter Mesh specifications, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.
| Commonly Used Specifications of Plain and Twilled Weave Filter Mesh | ||||
| Mesh Count | Aperture (mm) | Diameter (mm) | Open Area % | Weight kg/m2 |
| 2 | 11.1 | 1.60 | 76.4 | 2.5 |
| 3 | 6.9 | 1.60 | 65.8 | 3.8 |
| 4 | 4.8 | 1.60 | 56.0 | 5.1 |
| 5 | 4.1 | 1.00 | 64.5 | 2.5 |
| 6 | 3.0 | 1.25 | 49.7 | 4.7 |
| 7 | 2.9 | 0.71 | 64.7 | 1.8 |
| 8 | 2.3 | 0.90 | 51.3 | 3.2 |
| 10 | 2.0 | 0.56 | 60.8 | 1.6 |
| 10 | 1.8 | 0.71 | 51.9 | 2.5 |
| 12 | 1.6 | 0.56 | 54.1 | 1.9 |
| 14 | 1.4 | 0.40 | 60.8 | 1.1 |
| 14 | 1.4 | 0.45 | 56.5 | 1.4 |
| 16 | 1.1 | 0.45 | 51.3 | 1.6 |
| 16 | 1.0 | 0.56 | 41.9 | 2.5 |
| 18 | 1.0 | 0.45 | 46.4 | 1.8 |
| 18 | 0.9 | 0.50 | 41.7 | 2.3 |
| 20 | 0.8 | 0.45 | 41.7 | 2.0 |
| 20 | 0.8 | 0.50 | 36.8 | 2.5 |
| 22 | 0.9 | 0.22 | 65.5 | 0.5 |
| 24 | 0.7 | 0.40 | 38.7 | 1.9 |
| 28 | 0.6 | 0.36 | 37.0 | 1.8 |
| 30 | 0.6 | 0.22 | 54.1 | 0.8 |
| 30 | 0.6 | 0.28 | 44.8 | 1.2 |
| 34 | 0.5 | 0.25 | 44.3 | 1.1 |
| 36 | 0.5 | 0.22 | 46.6 | 0.9 |
| 36 | 0.5 | 0.25 | 41.7 | 1.1 |
| 40 | 0.4 | 0.22 | 41.9 | 1.0 |
| 44 | 0.4 | 0.22 | 38.3 | 1.1 |
| 50 | 0.3 | 0.20 | 36.8 | 1.0 |
| 60 | 0.3 | 0.16 | 38.7 | 0.8 |
| 70 | 0.3 | 0.08 | 62.5 | 0.2 |
| 70 | 0.2 | 0.16 | 31.3 | 0.9 |
| 80 | 0.2 | 0.13 | 36.8 | 0.6 |
| 80 | 0.2 | 0.14 | 31.3 | 0.8 |
| 100 | 0.2 | 0.10 | 36.8 | 0.5 |
| 100 | 0.1 | 0.11 | 31.3 | 0.6 |
| 120 | 0.1 | 0.09 | 33.0 | 0.5 |
| 130 | 0.2 | 0.04 | 60.8 | 0.1 |
| 145 | 0.1 | 0.06 | 41.0 | 0.3 |
| 150 | 0.1 | 0.06 | 39.4 | 0.3 |
| 160 | 0.1 | 0.04 | 59.8 | 0.1 |
| 165 | 0.1 | 0.05 | 45.6 | 0.2 |
| 180 | 0.1 | 0.03 | 62.0 | 0.1 |
| 180 | 0.1 | 0.05 | 41.7 | 0.2 |
| 200 | 0.1 | 0.04 | 46.9 | 0.2 |
| 200 | 0.1 | 0.05 | 36.8 | 0.3 |
| 200 | 0.1 | 0.06 | 31.3 | 0.3 |
| 230 | 0.1 | 0.04 | 45.4 | 0.2 |
| 250 | 0.1 | 0.04 | 36.8 | 0.2 |
| 270 | 0.1 | 0.04 | 38.1 | 0.2 |
| 300 | 0.1 | 0.03 | 41.7 | 0.1 |
| 300 | 0.0 | 0.04 | 33.0 | 0.2 |
| 325 | 0.1 | 0.03 | 41.8 | 0.1 |
| 325 | 0.0 | 0.03 | 38.0 | 0.2 |
| 325 | 0.0 | 0.04 | 29.1 | 0.2 |
| 350 | 0.0 | 0.03 | 34.4 | 0.2 |
| 400 | 0.0 | 0.03 | 36.8 | 0.1 |
| 400 | 0.0 | 0.03 | 27.8 | 0.2 |
| 500 | 0.0 | 0.03 | 25.8 | 0.2 |
| Commonly Used Specifications of Plain Dutch Weave Filter Mesh | |||
| Mesh count | Flowing Rate (micron) | Weight Kg/m2 | Mesh Thickness (mm) |
| 8x85 | 330 - 350 | 2.5 | 0.93 |
| 10x70 | 315 - 335 | 3 | 1.04 |
| 12x64 | 280 - 300 | 4.1 | 1.21 |
| 10x90 | 270 - 290 | 2.5 | 0.93 |
| 14x88 | 280 - 300 | 3.15 | 0.76 |
| 12x95 | 240 - 260 | 2.3 | 0.79 |
| 14x110 | 220 - 240 | 2.15 | 0.72 |
| 18x100 | 200 - 210 | 2.05 | 0.69 |
| 20x150 | 170 - 190 | 1.6 | 0.55 |
| 20x150 | 160 - 180 | 1.55 | 0.5 |
| 22x140 | 140 - 170 | 2.1 | 0.66 |
| 24x110 | 100 - 112 | 2.5 | 0.76 |
| 30x150 | 80 - 100 | 1 | 0.5 |
| 40x200 | 75 - 80 | 1.3 | 0.4 |
| 50x280 | 71 - 75 | 1 | 0.32 |
| 50x250 | 56 - 63 | 1 | 0.32 |
| 80x400 | 36 - 45 | 0.82 | 0.23 |
| 80x300 | 32 - 36 | 0.98 | 0.25 |
| Commonly Used Specifications of Twilled Dutch Weave Filter Mesh | |||
| Mesh count | Flowing Rate (micron) | Weight Kg/m2 | Mesh Thickness (mm) |
| 24x300 | 112 - 118 | 2.85 | 0.63 |
| 20x260 | 110 - 120 | 3.1 | 0.67 |
| 30x250 | 100 - 112 | 3.2 | 0.65 |
| 40x560 | 71 - 80 | 1.7 | 0.39 |
| 80x700 | 34 - 36 | 1.2 | 0.26 |
| 165x1100 | 20 - 21 | 0.9 | 0.16 |
| 165x1400 | 15 - 18 | 0.7 | 0.15 |
| 200x1400 | 11 - 13 | 0.75 | 0.14 |
| 250x1400 | 11 - 12 | 0.68 | 0.12 |
| 325x2300 | 7 - 8 | 0.47 | 0.09 |
| 400x2800 | 5 - 6 | 0.36 | 0.06 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.
For your reference, some photos of our products and factory are listed here, please check.
