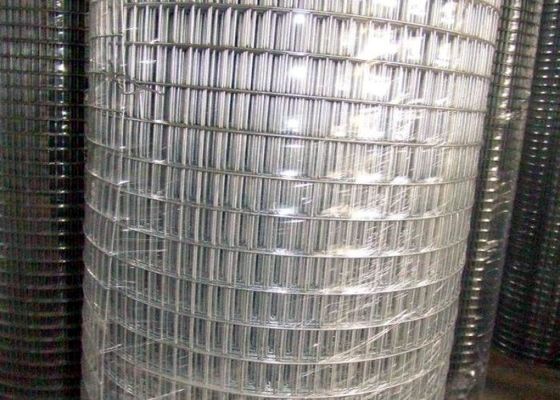

External Wall Insulation Welded Mesh Rolls

External Wall Insulation Welded Mesh Rolls
External Wall Insulation Welded Mesh Rolls External Wall Insulation Welded Mesh Rolls External Wall Insulation Welded Mesh Rolls External Wall Insulation Welded Mesh Rolls

Large Image :  External Wall Insulation Welded Mesh Rolls

Product Details:
Place of Origin: Anping, China
Brand Name: KDL
Model Number: 5ft galvanized welded mesh rolls
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: USD 10-15 per roll
Packaging Details: Wrapped with waterproof paper and shrink film in wooden cases.
Delivery Time: stock 5-8 workdays, customed 25 workdays
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 300 rolls per month

External Wall Insulation Welded Mesh Rolls

Description
Certification: ISO, SGS Product Name: Small Square Hole Galvanized Welded Mesh Rolls For The External Wall Insulation
Materilal: Low Carbon Steel Wire, Galvanized Wire Wire Diamter: 1mm-3mm, Also Accept Customed Size
Hole Size: 1/4''*1/4'', 3/8''*3/8'', 3/4''*3/4'', 1''*1'', Also Accept Customed Size Hole Shape: Square
Width: 1m, 1.2m, 1.5m, Also Accept Customed Size Length: 10m, 15m, 20m, 25m,30m, Also Accept Customed Size
Surface: Galvanized, Hot Dipped Galvanized Color: Bright Silver
Packing: Plastic Film, Waterproof Paper, Usage: Construction, Wall Building
High Light:

Wall Insulation Welded Mesh Rolls

,

Wall Insulation wire mesh roll

Small Square Hole Galvanized Welded Mesh Rolls for the External Wall Insulation



Product description:

Galvanized welded mesh is formed by spot welding or row welding with high-quality low-carbon steel wire through automatic, precise and accurate mechanical equipment, and then surface treatment with zinc dipping process is adopted, so as to make the mesh flat, mesh uniform, welding points firm, local mechanical processing performance good, stable, anti-corrosion and anti-corrosion.

External Wall Insulation Welded Mesh Rolls 0



Types of process:

Galvanized welded wire mesh is divided into two types: electro galvanizing and hot-dip galvanizing:



Electro galvanizing is often referred to as cold galvanizing technology. Cold galvanizing is to hang the welding mesh which has been derusted and shows no dirt and soakage onto the cathode in the special electroplating tank. The anode is zinc. The method of connecting DC power supply, transferring zinc ions on the anode to the cathode, discharging on the cathode, and plating a zinc layer on the welding mesh. The coating is relatively thin, generally within 5-30 microns, so the anti-corrosion time will be relatively short;



Hot dip galvanizing is to melt the zinc into liquid state and immerse the base metal in it, so that the zinc and the base metal can form mutual penetration, and the combination is very tight, and other impurities or defects are not easy to remain in the middle. It is similar to that the two materials are melted together at the coating position, and the coating thickness is large, which can reach 100 microns, so the corrosion resistance is high. The salt spray test is no problem after 96 hours, which is equivalent to 10 years under the normal environment.

External Wall Insulation Welded Mesh Rolls 1



Application:

Galvanized welded wire mesh is widely used in industry, agriculture, aquaculture, construction, transportation, mining, etc; Such as machine protective cover, animal fence, flower and tree fence, window fence, passage fence, poultry cage, egg basket, household office food basket, paper basket and decoration.



Specifications:

Hole Size(inch) Hole Size(mm) Wire Diameter (BWG)
1/4" x 1/4" 6.4 x 6.4 22,23,24
3/8" x 3/8" 10.6 x 10.6 19,20,21,22
1/2" x 1/2" 12.7 x 12.7 16,17,18,19,20,21,22,23
5/8" x 5/8" 16 x 16 18,19,20,21,
3/4" x 3/4" 19.1 x 19.1 16,17,18,19,20,21
1" x 1/2" 25.4 x 12.7 16,17,18,19,20,21
1-1/2" x 1-1/2" 38 x 38 14,15,16,17,18,19
1" x 2" 25.4 x 50.8 14,15,16
2" x 2" 50.8 x 50.8 12,13,14,15,16



Factory introduction:

Anping Kingdelong Wire Mesh CO. Ltd, KDL for short, as a welded wire mesh manufacture since 1986, can supply you various of specifications welded wire mesh. More than 200 machines can make the daily output to15,000sqms, and it can meet your urgent and large order in a shorter delivery time. Professional checking department can insure your welded wire mesh is made of high quality of raw wire, accurate wire diameter, perfect square hole, even the width and length in 1 centimeter. You can get the welded wire mesh with ISO 9001, ISO14001, ISO 45001, SGS certifications. Custom size can be accepted too. Just send your inquiry or call us.

External Wall Insulation Welded Mesh Rolls 2
